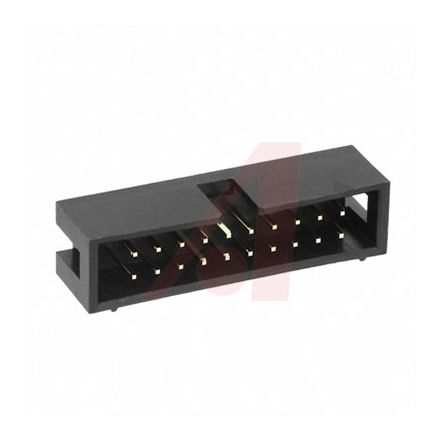

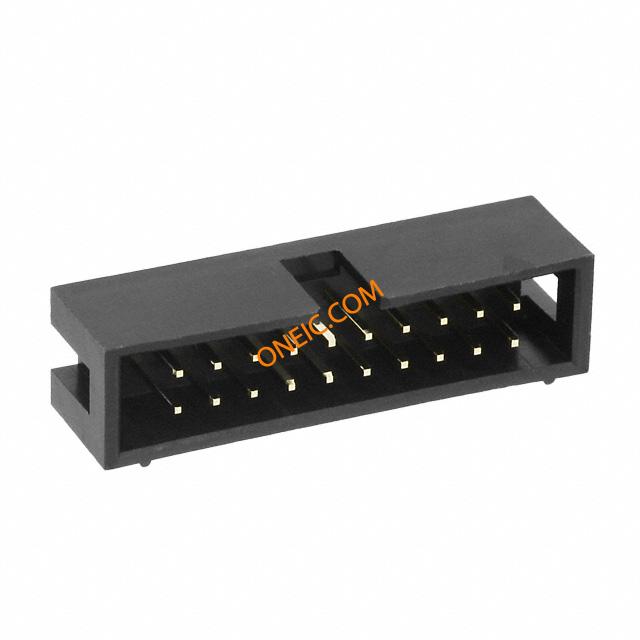

30320-6002HB
| 制造商 | 3M Company |
| 描述 | ヘッダ & ワイヤハウジング 20P STRT 4WALL GLDFL .100" Ã .100" Low Profile Four-Wall, Straight and Right Angle CONN HEADER 20POS DL STR GOLD Headers & Wire Housings 20P STRT 4WALL GLDFL Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole WIRE TO BOARD CONN, HEADER, 20POS, 2ROW Header;LowProfile,4-Wall;0.1Inch;PBT;Straight;20Cnts;303Series 3M 303 系列 2.54mm节距 20路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 |
| 分类 |
商业参数
| 零件号别名 | 05111163227 SE008002088 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 1,000 | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :3M - 303 Series | 最大额定电流 | 1 A |
机械参数
| 颜色 | Black | 深度 | 8.78 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 9.3 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 33 mm |
| 端接样式 | Through Hole | 触点数 | 20 |
| 接触件端接 | :Through Hole Vertical | 位数 | 20 |
| 接触长度 - 配合 | 0.236" (6.00mm) | 接触镀层厚度 | Flash |
产品信息
| 类型 | Box Header | 连接器性别 | HDR |
| 系列 | 303 | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | ||
