点击放大查看

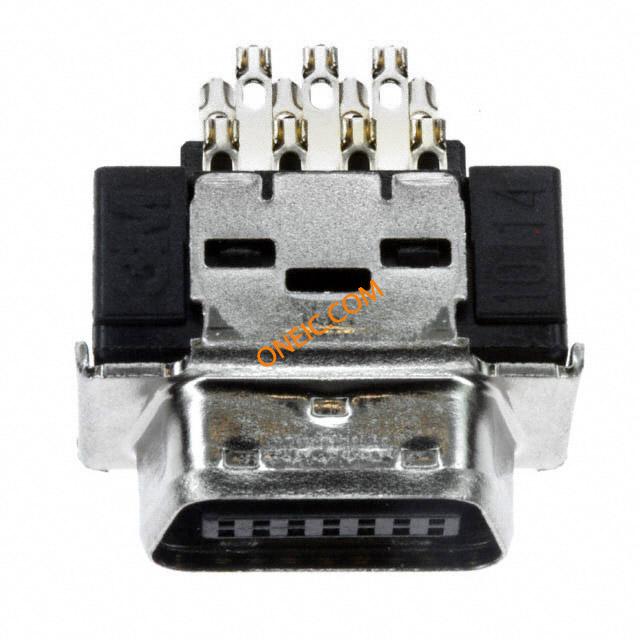

10114-3000PE
| 制造商 | |
| 描述 | D-Sub Micro-D Connectors MDR/PLUG/14 POS Wiremount Plug, Solder, Shielded CONN MDR PLUG 14POS SLD CUP 14 way shielded I/O solder plug,1A Conn SCSI PL 14 POS 2.54mm Solder Cup ST Cable Mount 14 Terminal 1 Port PLUG, MDR, SOLDER, 14WAY Conn;D-Sub;Mini-D-Ribbon;CablePlug;14Pos;STR;101Series;Solder;30-24AWG;0.050In. Connector: MDR; plug; male; shielded; PIN:14; 1.27mm; 24÷30AWG; 1A MDR plug 14P, 10114-3000PE, 3M 3M 101 系列 电缆安装 14 路 焊接 D-sub 连接器 插头 , 1A |
| 分类 |
商业参数
| 零件号别名 | 54745239792 JE150332813 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | In Transition | 标准 | UL94V-0 |
| 海关税号 | 85369010 | 材料阻燃等级 | :UL94V-0 |
电气参数
| 测试电压 | 0.5kV | 极数 | :14 |
| 击穿电压 | :500V | 最大额定电流 | 1 A |
| 绝缘电阻 | :500Mohm | 触点额定电流 | 1A |
| 连接器类型 - 电压输入 | shielded | ||
机械参数
| 深度 | 19.3mm | 间距 | 2.54mm |
| 宽度 | 9.1mm | 高度 | 9.1 mm |
| 长度 | 18.2mm | 重量 | 0.004 |
| 材料（通用） | :Steel | 导线线规 | 30-24 |
| 端接方式 | Solder Cup | 柱间距 | 1.27mm |
| 基体材料 | polyester | 安装类型 | Straight |
| 外壳镀层 | :Gold | 行程角度 | Straight |
| 连接器类型 | Plug | 接触镀层 | Gold |
| 安装样式 | Wire | 排数 | 2 |
| 连接器样式 | Center Strip Contacts | 插入件材料 | Polyester |
| 触头材料 | Copper Alloy | 壳体材料 | Steel |
| 总长度 | 18.2 mm | 包装数量 | 100 |
| 主要材料 | Mini-D-Ribbon | 连接器 - 电缆 | plug |
| 端接样式 | Solder | 触点数 | 14 |
| 接触件端接 | :Solder | 位数 | 14 |
| 接触镀层厚度 | 20µin (0.51µm) | 触点材料 - 镀层 | nickel plated, gold plated |
| 第一连接器安装类型 | :Cable | ||
产品信息
| SPG | 100 | 类型 | SCSI |
| 连接器性别 | Male | 已删除 | Compliant |
| 产品特性 | Shielded | CAD图纸 | 3D CAD Model |
| 制造商全称 | 101 | 端口数 | 1 Port |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | +105°C | 结工作温度 | 105C |
文档与媒体
相关型号
N10214-52B2PC
3m interconnect solutions
Conn SCSI RCP 14 POS 2.54mm Solder RA Thru-Hole 14 Terminal 1 Port D-Sub Micro-D Connectors 14P R/A SHLD RECEPT BOARDMNT M2.5 THREAD CONN MINI-D 14POS R/A RECPT Socket MDR Panel 102 Series R/A 14 way SOCKET, MDR, THT, RA, 14WAY SocketMDRPanel102SeriesR/A14way 3M MDR 102 系列 1.27mm 节距 14 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
10114-3000PE
3M Electronic Solutions Division
D-Sub Micro-D Connectors MDR/PLUG/14 POS Wiremount Plug, Solder, Shielded CONN MDR PLUG 14POS SLD CUP 14 way shielded I/O solder plug,1A Conn SCSI PL 14 POS 2.54mm Solder Cup ST Cable Mount 14 Terminal 1 Port PLUG, MDR, SOLDER, 14WAY Conn;D-Sub;Mini-D-Ribbon;CablePlug;14Pos;STR;101Series;Solder;30-24AWG;0.050In. Connector: MDR; plug; male; shielded; PIN:14; 1.27mm; 24÷30AWG; 1A MDR plug 14P, 10114-3000PE, 3M 3M 101 系列 电缆安装 14 路 焊接 D-sub 连接器 插头 , 1A
10214-1S10PE
3M Electronic Solutions Division
D-Sub Micro-D Connectors 14P SMT RA RECEPT .050" Surface Mount Right Angle Die-Cast Receptacle â Shielded CONN MDR RCPT 14POS R/A SMD 20AU
10214-1210VE
3M Electronic Solutions Division
D-Sub Micro-D Connectors 14P SMT R/A SHLD RCP CONN MINI D RECEPT 14POS R/A SMD
3829
3M Electronic Solutions Division
Crimpers HAND PRESS TOOL HAND FOR MINI-D PLUG MiniDRibbon(MDR)IDCHandtoolKit(forterminatingcabletoMDRIDCplugs)
10214-1210PE
3m interconnect solutions
Conn SCSI RCP 14 POS 0.64mm Solder RA SMD 14 Terminal 1 Port D-Sub Micro-D Connectors 14P R/A SHLD RECEPT SURFACE MOUNT Boardmount Receptacle, Surface Mount, Right Angle, Shielded CONN MDR RECEPT 14POS R/A SMD 3M 102 Series 0.5in 14 Way 2 Row Right Angle PCB Socket Surface Mount SOCKET, MDR, SMT, RA, 14WAY RECEPTACLE,SHIELDED,SURFACEMOUNT,RIGHTANGLE,14CONTACTS Connector: MDR; socket; female; horizontal; shielded; PIN:14; 1A 3M 102 系列 2行 14路 直角 12.7mm节距 表面贴装 印刷电路板插座
10214-6212PC
3m interconnect solutions
Conn SCSI RCP 14 POS 2.54mm Solder ST Thru-Hole 14 Terminal 1 Port D-Sub Micro-D Connectors 14P VERT SHLD RECEPT BOARDMNT M2.5 THREAD CONN MDR RECPT 14POS VERT T/H MDR D-Sub receptacle 102 Series 14 way .050 Mini D Ribbon Connector (14 pos) Receptacle Vertical Boardmount Shielded MINI D RIBBON CONN, RECEPTACLE 14POS THD .050MiniDRibbonConnector(14pos)ReceptacleVerticalBoardmountShielded 3M MDR 102 系列 1.27mm 节距 14 路 直向 通孔安装 Micro-D 印刷电路板连接器 插座
10214-55G3PC
3m interconnect solutions
Conn SCSI RCP 14 POS 2.54mm Solder RA Thru-Hole 14 Terminal 1 Port D-Sub Micro-D Connectors 14P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 14POS R/A M2.5 Socket MDR 102 Series SMT 14 way SOCKET, MDR, THT, RA, 14WAY SocketMDR102SeriesSMT14way 3M MDR 102 系列 1.27mm 节距 14 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
N10214-5212PC
3m interconnect solutions
Conn SCSI RCP 14 POS 2.54mm Solder RA Thru-Hole 14 Terminal 1 Port D-Sub Micro-D Connectors 14P R/A SHLD RECEPT BOARDMNT M2.5 THREAD CONN MINI-D 14POS R/A RECPT Receptacle MDR PCB 90deg 14 pin 0.050MiniDRibbon,Thru-Hole,RightAngleSocket,FullyShielded14positions 3M MDR 102 系列 1.27mm 节距 14 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
100810
3m interconnect solutions
100810SCC1000SERIES8X10STATICSHIELDINGBAG100EACH Anti-Static Control Products 8X10 pkg./100 Anti-Static Control Products 8X10" pkg./100 BAG STATIC METL-IN 8X10" 1=1 BAG SCC 1000 Static Shield Bag/Metal-IN (Size 8 x 10) ANTI-STATIC STORAGE BAGS SCC1000StaticShieldBag/Metal-IN(Size8x10) Protection bag; ESD version; metallised, open; W:203mm; L:254mm

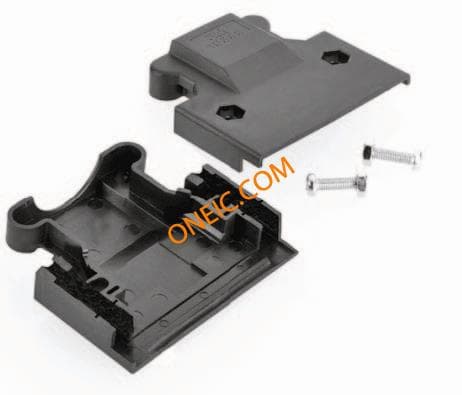

10314-52F0-008
