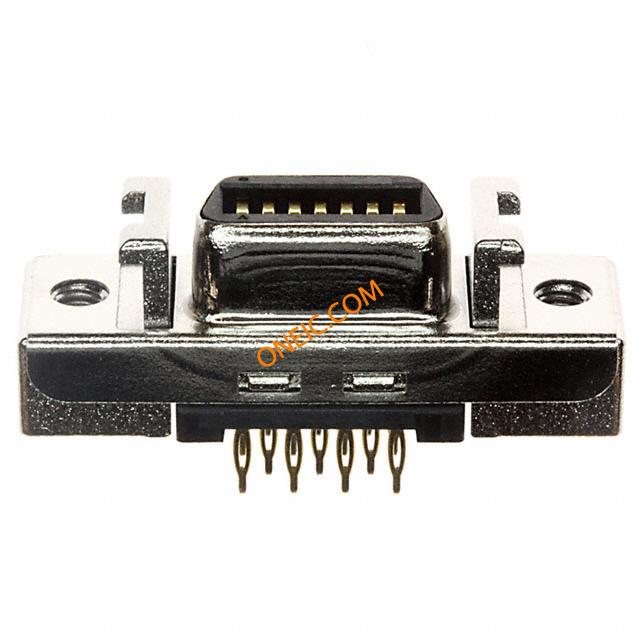

10214-R21TS
| 制造商 | |
| 描述 | Conn SCSI RCP 14 POS 2.54mm Press Fit ST Thru-Hole 14 Terminal 1 Port D-Sub Micro-D Connectors 14P VERT SHLD RECEP BRDMNT COMPLIANT PIN Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MDR RCPT 14POS VERT T/H 0.050MiniDRibbonBoardMountCompliantPinVerticalReceptacle14positions |
| 分类 |
商业参数
| 零件号别名 | 51900163700 JE150266292 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 认证机构 | cUL,UL |
| RoHS合规（认证） | Yes | 材料阻燃等级 | UL94V-0 |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 间距 | 2.54 mm | 重量 | 1 lb |
| 端接方式 | Press Fit | 安装类型 | Through Hole |
| 外壳镀层 | Zinc | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 法兰特征 | Insert, Threaded (M2.5); Latchblocks | 外壳涂层 | Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 触头材料 | CopperAlloy |
| 壳体材料 | ZincAlloy | 主要材料 | Mini-D-Ribbon |
| 端接样式 | Solder | 触点数 | 14 |
| 介电材料 | PBT | 位数 | 14 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 产品特性 | Shielded | 制造商全称 | 102 |
