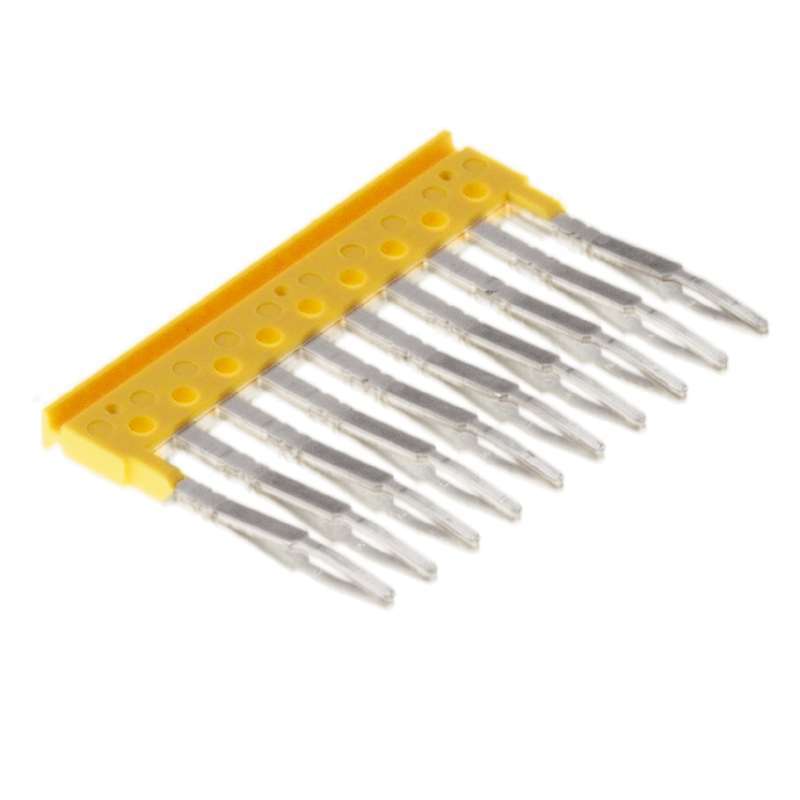

1776200000
| 制造商 | Weidmüller Holding AG & Co. KG |
| 描述 | ZQV 1.5/10 -EA TERMINAL CROSS CONN ZQV 1.5/10 Weidmuller 1776200000 Cross Connector Terminal Block, Series: ZQV Comb bridge; Application: ZDU1.5 |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
合规参数
| RoHS | Compliant | IEC标准 | 27-14-11-40 |
| 标准编号 | 30-21-18-01 | 材料阻燃等级 | V-0 |
电气参数
| 频率 | 27-14-11-40 | 最大额定电流 | 17.5 A |
机械参数
| 深度 | 24.8 mm | 间距 | 3.5 mm |
| 宽度 | 2.8 mm | 高度 | 34 mm |
| 重量 | 4.03 g | 材料（通用） | Wemid |
| 深度（英寸） | 0.976 inch | 紧固类型 | Plugged |
| 安装导轨 | none | 宽度（英寸） | 0.11 inch |
| 连接器用途 | comb bridge | 高度（英寸） | 1.339 inch |
| 包装数量 | 20 | 连接器颜色 | Yellow |
| 位数 | 10 | ||
产品信息
| SPG | 20 | 类型 | Terminal Block, Cross Connection |
| 样式 | Flat Pins | 系列 | ZQV |
| ETIM 6*0 | EC000489 | GTIN（EAN） | 4032248200177 |
| 附件类型 | Cross connector | 单元数量 | 1 |
| 工程数据 | EPLAN, Zuken E3.S | 固件版本 | For the terminals |
| 安装类型 | Direct mounting | 其他规格 | No |
| 应用细节 | ZDU1.5 | 适用产品/相关产品 | Z Series |
环境参数
| ET（伏秒积） | EC000489 | 防护等级 | 27-14-11-40 |
| 工作温度 | -50 °C | ||
