点击放大查看
T93YB502KT20
| 制造商 | |
| 描述 | Res Cermet Trimmer 5K Ohm 10% 1/2W 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube TRIMMER 5K OHM 0.5W TH TRIMMER T93YB 5K Trimmer Resistors - Through Hole 3/8 SQ V/ADJ 5K TRIMMER, 22 TURN 5K TRIMMER;CERMET;5.0KOHM;21TURN;1/2W Potentiometer: mounting; multiturn; 5kΩ; 500mW; THT; ±10%; linear Vishay 21（电气）转，23（机械）转 转 通孔 微调电阻器, 带 针接端, 5kΩ ±10%, 0.5W T93YB 5K 10% LIN 0,5W |
| 分类 |
商业参数
| 最小起订量 | 500 | 产品 | Trimmer Resistors - Multi Turn |
| 单位包装 | 50 | 其他名称 | T93YB-5.0K |
| 产品类别 | Trimmer Resistors - Through Hole | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85334010 | ||
电气参数
| 容差 | 10 % | 电阻 | 5 KOhm |
| 元件类型 | Cermet | 功率（瓦） | 0.5W, 1/2W |
| 额定功率 | 1/2 W | 额定电压 | 250 V |
| 额定电压值 | 250V | 电阻值（欧姆） | 5k |
| 接触电阻 | :2% | 击穿电压 | :1000V |
| 电阻公差 | 5kΩ | 基极电阻（R1） | :Radial Leaded |
| 直流电阻（DCR）（最大） | :5kohm | ||
机械参数
| 深度 | 5mm | 锥度 | Linear |
| 高度 | 11mm | 长度 | 9.7mm |
| 扭矩 | 1,5Ncm | 重量 | 0.0012 |
| 底座类型 | :Through Hole | 包装方式 | Tube |
| 本体尺寸 | 9.8 x 9.8 x 5mm | 安装类型 | Through Hole |
| 端子类型 | :PCB Terminals | 安装样式 | PCB |
| 轴直径 | 2.2 mm | 总长度 | 9.7 |
| 刀片材料 | Cermet | 包装数量 | 500 |
| 尺寸/外形 | Square - 0.382" L x 0.197" W x 0.386" H (9.70mm x 5.00mm x 9.80mm) | 连接器间距 | 2.5x2.5mm |
| 端接样式 | Pin | 导体材料 | cermet |
| 电阻材料 | Cermet | ||
产品信息
| SPG | 500 | 类型 | Trimmer |
| 系列 | T93 | 原理图 | see |
| 技术 | Cermet | 产品子类型 | Multi-Turn |
| 调节方式 | Top Adjustment | 特性 | linear |
| 圈数 | 21(Elec)|23(Mech) Turns | 单元数量 | 1 |
| 类型属性 | 3/8" | ||
环境参数
| NEMA 机架尺寸 | :IP67 | 防护等级 | IP67 |
| 工作温度 | -55 to 155 °C | 温度系数 | ±100ppm/°C |
| 典型温度系数 | :100ppm/°C | ||
文档与媒体
相关型号
T93YB502KT20
vishay / roederstein
Res Cermet Trimmer 5K Ohm 10% 1/2W 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube Res Cermet Trimmer 5K Ohm 10% 0.5W(1/2W) 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube TRIMMER 5K OHM 0.5W TH TRIMMER T93YB 5K Trimmer Resistors - Through Hole 3/8 SQ V/ADJ 5K TRIMMER, 22 TURN 5K TRIMMER;CERMET;5.0KOHM;21TURN;1/2W Potentiometer: mounting; multiturn; 5kΩ; 500mW; THT; ±10%; linear Vishay 21（电气）转，23（机械）转 转 通孔 微调电阻器, 带 针接端, 5kΩ ±10%, 0.5W T93YB 5K 10% LIN 0,5W
H-90
bourns
ADJUSTMENT TOOL FOR TRIMPOT Adjustment Tools For Use On Most Trimmer Shafts/Rotors TUNING TOOL FLAT 5" Trimmer, pot. - adjustment tool H-90 Potentiometer Tools & Hardware ADJUST. TOOL ADJUSTMENT TOOLS TRIMMING TOOL TrimmerTool,Adjustment;Tweeker;BldThk0.016in;BldW0.08in;L5in Tool: for potentiometers adjustment; Application:3319P-1 Adjusting tool, H-90, Bourns 微调面板安装适配器 127mm

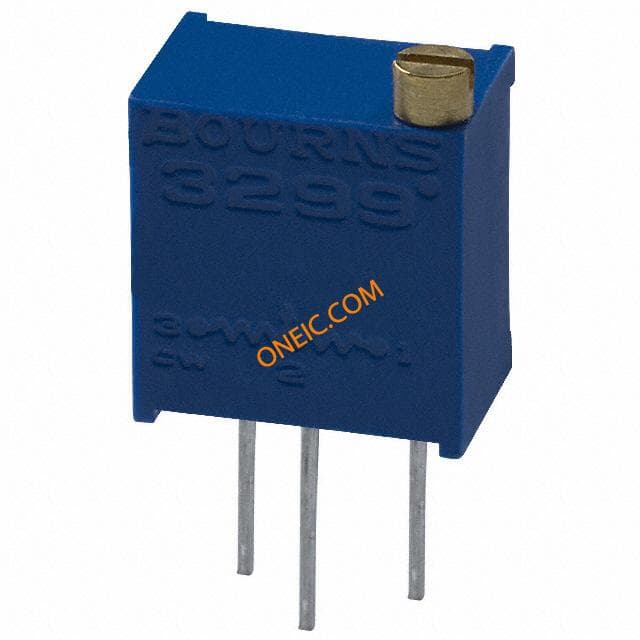

3299Y-1-502LF
