T93YA203KT20

点击放大查看

T93YA203KT20

制造商
Vishay Intertechnology, Inc.
描述Res Cermet Trimmer 20K Ohm 10% 1/2W 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube Res Cermet Trimmer 20K Ohm 10% 0.5W(1/2W) 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube TRIMMER 20K OHM 0.5W TH TRIMMER T93YA 20K Trimmer Resistors - Through Hole 3/8 SQ V/ADJ 20K TRIMMER, 22 TURN 20K TRIMMER, POTENTIOMETER, 20KOHM 23TURN THRU HOLE TRIMMER;CERMET;20KOHM;21TURN;1/2W Potentiometer: mounting; multiturn; 20kΩ; 500mW; THT; ±10%; linear T93YA 20K 10% LIN 0,5W
分类
电阻器与电位器微调电位器插件微调电位器
对参数有疑问？问 AI 助手

商业参数

最小起订量500产品Trimmer Resistors - Multi Turn
单位包装50其他名称T93YA-20K
产品类别Trimmer Resistors - Through Hole标准包装数量Rail / Tube
工厂包装数量500

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant
海关税号85334010抗辐射加固No
军用标准Not Required

电气参数

容差10 %电阻20 KOhm
元件类型Cermet功率（瓦）0.5W, 1/2W
额定功率1/2 W额定电压250 V
额定电压值250V电阻值（欧姆）20k
接触电阻:2%击穿电压:1000V
电阻公差20kΩ基极电阻（R1）:Radial Leaded
直流电阻（DCR）（最大）:20kohm

机械参数

深度5mm锥度Linear
高度11mm长度9.7mm
扭矩1,5Ncm重量0.0012
直径Not Required mm底座类型:Through Hole
包装方式Tube本体尺寸9.8 x 9.8 x 5mm
安装类型Through Hole端子类型:PCB Terminals
安装样式Through Hole轴直径2.2 mm
总长度9.7 mm刀片材料Cermet
包装数量50尺寸/外形Square - 0.382" L x 0.197" W x 0.386" H (9.70mm x 5.00mm x 9.80mm)
连接器间距2.5mm端接样式Pin
导体材料cermet电阻材料Cermet

产品信息

SPG50类型Trimmer
系列T93已删除Compliant
原理图see技术Cermet
失效率Not Required产品子类型Multi-Turn
调节方式Top Adjustment特性linear
圈数21(Elec)|23(Mech) Turns单元数量1
类型属性3/8"

环境参数

NEMA 机架尺寸:IP67防护等级IP67
工作温度-55 to 155 °C温度系数±100ppm/°C
典型温度系数:100ppm/°C

文档与媒体

PDF 文档
t93.pdf
在线文档
T93 Series
在线文档
doc?51026

相关型号

3296W-1-203LF

3296W-1-203LF

bourns

Res Cermet Trimmer 20K Ohm 10% 1/2W 25(Elec)Turn 2.19mm (9.53 X 4.83 X 11.55mm) Pin Thru-Hole Tube Res Cermet Trimmer 20K Ohm 10% 0.5W(1/2W) 25(Elec)Turn 2.19mm (9.53 X 4.83 X 11.55mm) Pin Thru-Hole Tube TRIMMER 20K OHM 0.5W PC PIN 3296W top adj cermet trimmer,20K 10mm Trimmer Resistors - Through Hole 3/8 20Kohms Sealed Vertical Adjust TRIMMER, 20K, 25 TURN, T HOLE Trimmer;Cermet;Rest20Kilohms;PCB;25Turns;Pwr-Rtg0.5W Potentiometer: mounting; multiturn; 20kΩ; 500mW; THT; ±10%; linear Trimmer Cermet 20 kOhm linear 500 mW, 3296W-1-203LF, Bourns Bourns 3296W 系列 25 转 通孔 微调电阻器, 带 针接端, 20kΩ ±10%, 1/2W, ±100ppm/°C

¥6.5960
详情
H-90

H-90

bourns

ADJUSTMENT TOOL FOR TRIMPOT Adjustment Tools For Use On Most Trimmer Shafts/Rotors TUNING TOOL FLAT 5" Trimmer, pot. - adjustment tool H-90 Potentiometer Tools & Hardware ADJUST. TOOL ADJUSTMENT TOOLS TRIMMING TOOL TrimmerTool,Adjustment;Tweeker;BldThk0.016in;BldW0.08in;L5in Tool: for potentiometers adjustment; Application:3319P-1 Adjusting tool, H-90, Bourns 微调面板安装适配器 127mm

¥6.3920
详情
ACCTRITOB308-T000

ACCTRITOB308-T000

Vishay / Spectrol

手工具 TRIMMER ADJUSTMENT TOOL Trimmer Ajustment Tool Designed To Adjust Trimmers Of All Sizes TUNING TOOL FLAT NYLON 5" TRIMMING TOOL, POTENTIOMETER TRIMMER ADJUSTMENT TOOL Adjustment screwdriver, ACCTRITOB308-T000, Vishay

¥9.0600
详情
T93YA203KT20

T93YA203KT20

vishay / dale

Res Cermet Trimmer 20K Ohm 10% 1/2W 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube Res Cermet Trimmer 20K Ohm 10% 0.5W(1/2W) 21(Elec)/23(Mech)Turn 2.2mm (9.7 X 5 X 11.1mm) Pin Thru-Hole Tube TRIMMER 20K OHM 0.5W TH TRIMMER T93YA 20K Trimmer Resistors - Through Hole 3/8 SQ V/ADJ 20K TRIMMER, 22 TURN 20K TRIMMER, POTENTIOMETER, 20KOHM 23TURN THRU HOLE TRIMMER;CERMET;20KOHM;21TURN;1/2W Potentiometer: mounting; multiturn; 20kΩ; 500mW; THT; ±10%; linear T93YA 20K 10% LIN 0,5W

¥5.2632
详情

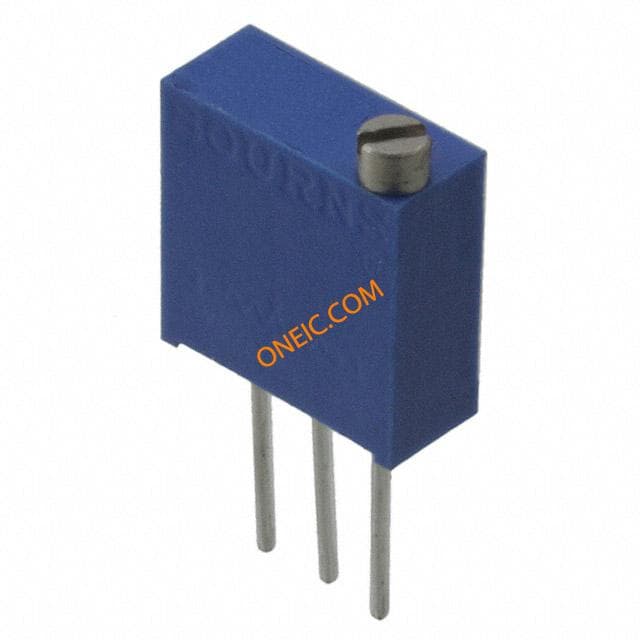

3292W-1-203LF
