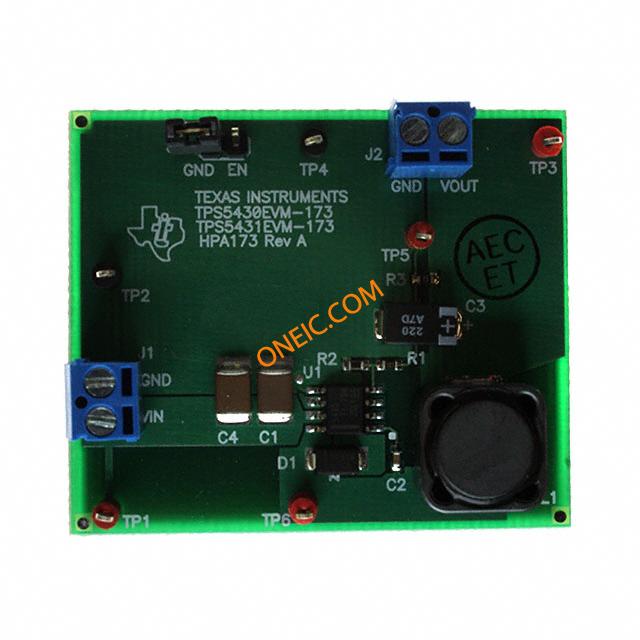

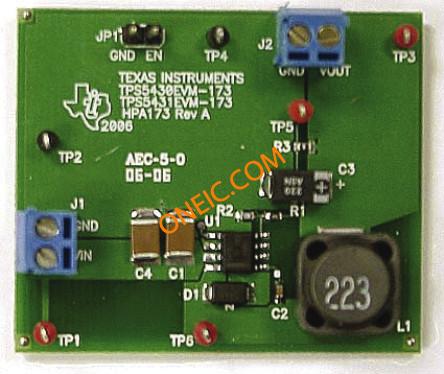

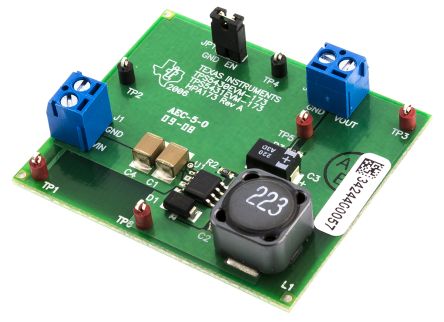

TPS5430EVM-173
| 制造商 | Texas Instruments Incorporated |
| 描述 | Step Down Converter Module, Evaluation Module Power Management IC Development Tools Step Down Conv Mod EVALUATION MODULE FOR TPS5430 TPS5430EVM-173, Development Kit, Power Management, C5000 TPS5430, SWIFT REG, EVAL MODULE Texas Instruments 评估模块 电源管理 处理器和微控制器开发套件 |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423255 | ||
电气参数
| 核心类型 | C5000 | 额定电压 | 15 V |
| 输出电流 | 3A | 元件数量 | :TPS5430 |
| 稳压器拓扑 | Buck | 开关频率 | 500kHz |
| 最小输入电压 | 5V | ||
机械参数
| 重量 | 0.05 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 49.5 mm x 41.9 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board, Software |
| 产品特性 | :Internally Compensated for Lower Parts Count, Supported by SWIFT Designer Software Tool | 套件类型 | :Power Management - Voltage Regulator |
| 基本单元 | :5430 | 技术 | Power Management |
| 套件内容 | Evaluation Module for SLVU157, Kitting List, Test Procedure, Test Setup | 主要用途 | DC/DC, Step Down |
| 卡标准 | Development Kit | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS5430 | 使用的IC/零件 | TPS5430 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Step Down DC / DC Converter |
| 适用产品/相关产品 | :TPS5430 | ||
文档与媒体
相关型号

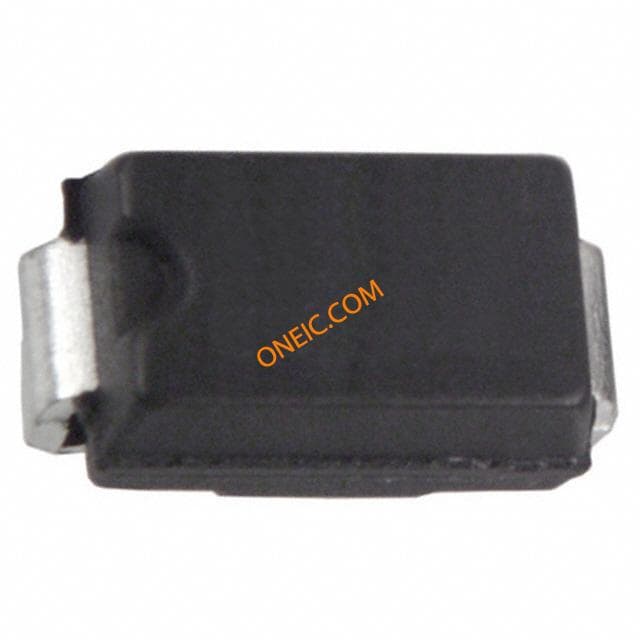

B340A-13-F
