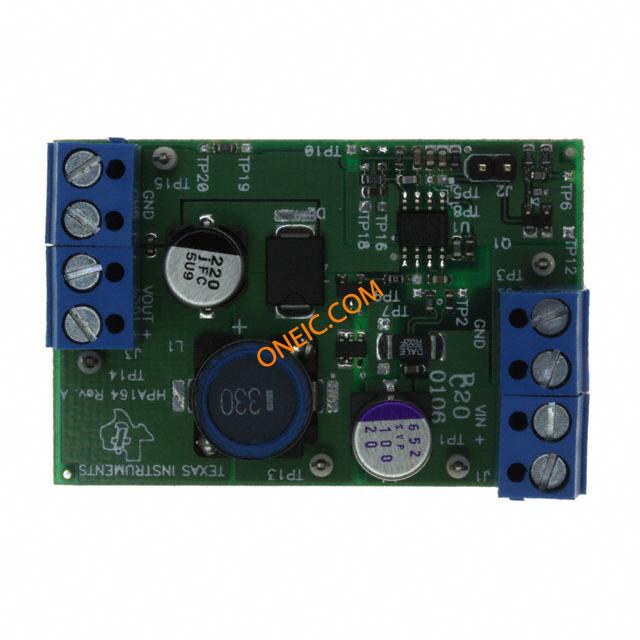

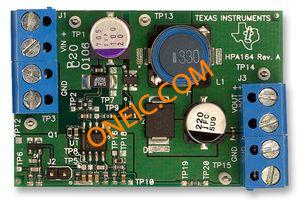

TPS40200EVM-001
| 制造商 | Texas Instruments Incorporated |
| 描述 | A Non Sync Buck Controller Evaluation Module Power Management IC Development Tools Non-Sync Buck Contr Eval Mod EVALUATION MODULE FOR TPS40200 TPS40200, DC/DC CNTLR, EVAL MOD |
| 分类 |
商业参数
| 产品 | Power Management Modules | 产品类别 | Power Management IC Development Tools |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | No | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423255 | ||
电气参数
| 核心类型 | :Non-Synchronous Buck Controller | 额定电压 | 12 V |
| 输出电流 | 2.5A | 元件数量 | :TPS40200 |
| 稳压器拓扑 | Buck | 开关频率 | 300kHz |
| 最小输入电压 | 3.3V | ||
机械参数
| 重量 | 0.05 | 电路板厚度 | Fully Populated |
| 尺寸/外形 | 53.8 mm x 35.6 mm | ||
产品信息
| 类型 | Development Kit | 内容 | Board |
| 产品特性 | :Single P-Channel MOSFET and Single Rectifier | 套件类型 | :Power Management |
| 基本单元 | :40200 | 套件内容 | :Board |
| 主要用途 | DC/DC, Step Down | 输出及类型 | 1, Non-Isolated |
| 工具类型/特性 | TPS40200 | 使用的IC/零件 | TPS40200 |
| 芯片组制造商 | :Texas Instruments | 应用细节 | :Buck Converter |
| 支持MCU系列 | :TPS40200 | 适用产品/相关产品 | :TPS40200 |
