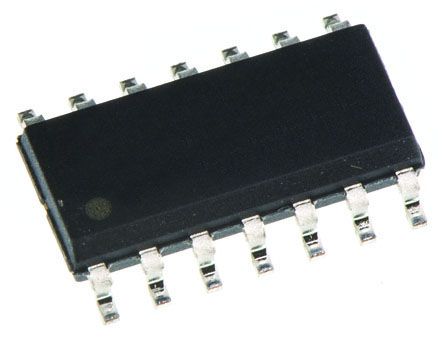

TL084QD
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Quad GP ±18V 14-Pin SOIC Tube IC OPAMP JFET 3MHZ 14SOIC Operational Amplifiers - Op Amps Quad Gen Pur OP Amp Quad GP �18V 14-Pin SOIC Tube IC, OP AMP, JFET, SMD, SOIC14 JFET-Input Operational Amplifier Texas Instruments 四路 JFET 运算放大器, 3MHz, 14针 SOIC |
| 分类 |
商业参数
| 其他名称 | 296-7214-5 | 产品类别 | Operational Amplifiers - Op Amps |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 106.02 dB | 压摆率 | 13@±15V V/us |
| 1kHz噪声电压 | 18 | 输出类型 | No |
| 失调漂移 | 18 | 输入功率 | Dual |
| 额定功率 | 0.68 W | 晶体管类型 | :High Voltage |
| 共模抑制比、电源抑制比（典型） | 80 dB | 输出电流 | 1.4mA |
| 供电电流 | 11.2@±15V mA | 供电电压 | ±3.5 V |
| 供电类型 | Dual | 通道数量 | 4 |
| 元件数量 | 4 | 输入偏置电流 | 30pA |
| 最大额定电流 | Catalog | ADC/DAC 数量 | :4 |
| 最小输入电压 | 3mV | 增益带宽积 | 3 MHz |
| 轨到轨工作 | No | 最大功耗 | 680 |
| 静态电流 (Iq) | 2.8 | 输入偏置电流（最大） | 0.0002@±15V uA |
| 输入失调电流（最大） | 0.0001@±15V | 25°C失调电压 | 15 |
| 输入噪声电流密度 | 0.01@±15V pA/rtHz | 输入噪声电压密度 | 18@±15V nV/rtHz |
| 电源电压范围（典型） | �5/�9/�12/�15 V | 输入失调电压（最大） | 9@±15V mV |
| 电压输出差（典型值）@ 距离 | 106.02 dB | ||
机械参数
| 宽度 | 4(Max) | 重量 | 0.004515 oz |
| 带宽 | :3MHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :14 |
| 封装形式 | 14SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 8.75(Max) |
| 包装数量 | SOIC | 位数 | 14 |
| 外壳尺寸-插件 | 1.5(Max) | 供应商器件封装 | 14-SOIC |
产品信息
| 类型 | General Purpose Amplifier | 系列 | TL084 |
| 已删除 | Not Compliant | 关断 | No |
| 软件 | SLOS081I | 基本单元 | :84 |
| 技术 | BiFET | 制造商全称 | General Purpose Amplifier |
| 放大器类型 | J-FET | 功能框图 | fbd_slos081i.gif |
| 电路数 | 4 | 使用的IC/零件 | View |
| 印刷电路板数量 | 14 | ||
环境参数
| 测试温度 | -40 to 125 | 工作温度 | -40 to 125 °C |
文档与媒体
