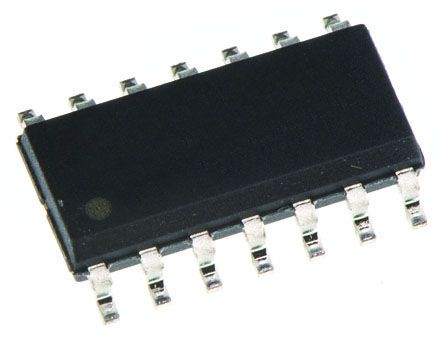

TL084CNSR
| 制造商 | Texas Instruments Incorporated |
| 描述 | OP Amp Quad GP ±18V 14-Pin SOP T/R IC OPAMP JFET 3MHZ 14SO Operational Amplifiers - Op Amps Quad JFET Neg Input OP Amp Quad GP �18V 14-Pin SOP T/R IC, OP AMP, QUAD JFET, SMD, SOIC14 JFET-Input Operational Amplifier Texas Instruments 四路 JFET 运算放大器, 3MHz, 14针 SOIC |
| 分类 |
商业参数
| 其他名称 | 296-7211-2 | 产品类别 | Operational Amplifiers - Op Amps |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 2000 |
| 标准封装名称 | SOIC | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | :084 | 抗辐射加固 | No |
电气参数
| 增益 | 106.02 dB | 压摆率 | 13@±15V V/us |
| 1kHz噪声电压 | 18 | 输出类型 | No |
| 失调漂移 | 18 | 输入功率 | Dual |
| 晶体管类型 | :High Voltage | 共模抑制比、电源抑制比（典型） | 70 dB |
| 输出电流 | 1.4mA | 供电电流 | 11.2@±15V mA |
| 供电电压 | ±3.5 V | 供电类型 | Dual |
| 通道数量 | 4 | 元件数量 | 4 |
| 输入偏置电流 | 30pA | 最大额定电流 | Catalog |
| ADC/DAC 数量 | :4 | 最小输入电压 | 3mV |
| 增益带宽积 | 3 MHz | 轨到轨工作 | No |
| 静态电流 (Iq) | 2.8 | 输入偏置电流（最大） | 0.0004@±15V uA |
| 输入失调电流（最大） | 0.0002@±15V | 25°C失调电压 | 15 |
| 输入噪声电流密度 | 0.01@±15V pA/rtHz | 输入噪声电压密度 | 18@±15V nV/rtHz |
| 电源电压范围（典型） | �5/�9/�12/�15 V | 输入失调电压（最大） | 15@±15V mV |
| 电压输出差（典型值）@ 距离 | 106.02 dB | ||
机械参数
| 宽度 | 5.6(Max) | 重量 | 0.007348 oz |
| 带宽 | :3MHz | 包装方式 | Tape and Reel |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :14 |
| 封装形式 | 14SOP | 冷却的封装 | SOP |
| 材料表面处理 | :MSL 1 - Unlimited | 总长度 | 10.5(Max) |
| 包装数量 | SOP | 位数 | 14 |
| 外壳尺寸-插件 | 1.85(Max) | 供应商器件封装 | 14-SO |
产品信息
| 类型 | General Purpose Amplifier | 系列 | TL084 |
| 关断 | No | 软件 | SLOS081I |
| 基本单元 | :084 | 技术 | BiFET |
| 制造商全称 | General Purpose Amplifier | 放大器类型 | J-FET |
| 功能框图 | fbd_slos081i.gif | 电路数 | 4 |
| 使用的IC/零件 | View | 印刷电路板数量 | 14 |
环境参数
| 温度范围 | :Commercial | 测试温度 | 0 to 70 |
| 工作温度 | 0 to 70 °C | ||
文档与媒体
相关型号
