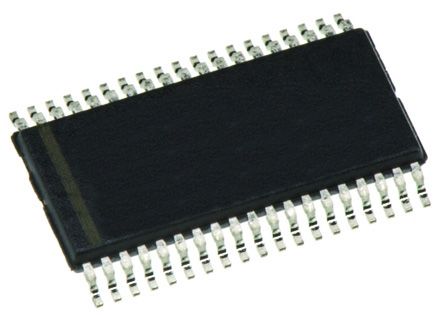

MSP430F2272IDA
| 制造商 | Texas Instruments Incorporated |
| 描述 | MCU 16-bit MSP430 RISC 32KB Flash 2.5V/3.3V 38-Pin TSSOP 16-bit Microcontrollers - MCU 16-bit Ultra-Lo-Pwr Microcontroller MCU 16-bit MSP430 MSP430 RISC 32KB Flash 2.5V/3.3V 38-Pin TSSOP IC MCU 16BIT 32KB FLASH 38TSSOP MSP430F2272IDA, 16 bit Microcontroller MSP430 16MHz 32kb Flash, 1kb RAM, I2C LIN SPI 38-Pin TSSOP IC, SM FLASH ULTRA LO PWR MCU 16-bit Ultra-Low-Power Microcontroller, 32KB Flash, 1K RAM Texas Instruments MSP430 系列 16 bit MSP430 MCU, 16MHz, 256 B, 32 kB ROM 闪存, 1 kB RAM, 38针 TSSOP封装 |
| 分类 |
商业参数
| 商标名 | MSP430 | 产品类别 | 16-bit Microcontrollers - MCU |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 40 |
| 标准封装名称 | TSSOP | ||
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| 认证机构 | No | 安全特性 | N/A |
电气参数
| GPIO | 32 | 转速 | 16 MHz |
| 定时器 | 6 x 16 bit | 存储器 | 0 |
| RAM 大小 | 1 KB | 内核大小 | 16-Bit |
| 核心类型 | MSP430 | 频率 | 16 MHz |
| 接口 | I2C/SCI/SPI/UART | 时钟速率 | 16 MHz |
| 比较器数量 | 0 | 延迟时间 | 1 |
| 分辨率 | 16bit | 存储器容量 | 1 KB |
| I/O 数量 | 32 | 计数器/定时器 | 2 |
| 位数 | 10 | 额定电压 | 1.8 → 3.6 V |
| 看门狗定时器 | 1 | 时钟频率 | :16MHz |
| 数据转换器 | A/D 12x10b | 最大频率 | 16MHz |
| DAC数量 | 2 | 振荡器类型 | Internal |
| 串行协议 | 1 | 供电电压 | 2.5|3.3 V |
| 分辨率（位） | 10bit | 通道数量 | 12 |
| 模拟输入/输出 | ADC10 - 12ch | 非易失性存储器 | 32 |
| 程序存储器大小 | 32 KB | 程序存储器类型 | Flash |
| ADC/DAC 数量 | 12 | 最小输入电压 | 3.6 |
| 最小供电电压 | 1.8 V | 频率（中心/带宽） | 16bit |
| 平均正向功率 | 0.7 | 每元件位数 | 10 bit |
| 供电电压 (Vcc/Vdd) | 1.8 V ~ 3.6 V | ||
机械参数
| 宽度 | 6.2mm | 高度 | 1.05mm |
| 长度 | 12.6mm | 重量 | 0.007189 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :38 |
| 封装形式 | 38TSSOP | 冷却的封装 | TSSOP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 12.6(Max) |
| 包装数量 | TSSOP | 尺寸/外形 | 12.6 x 6.2 x 1.05mm |
| 位数 | 38 | 外壳尺寸-插件 | 1.05(Max) |
| 核心数/总线宽度 | 16 Bit | 脉冲宽度失真（最大） | 2(3 x 16 bit) |
产品信息
| SPI | 2 | USB | 0 |
| 系列 | 2 Series | 产品特性 | Watchdog Temp Sensor Brown Out Reset |
| 协议 | 1 | 软件 | SLAS504G |
| 引导加载程序 | UART | 闪存大小 | :32KB |
| 倍率 | N/A | 片内RAM（通道数×位宽） | 12-chx10-bit |
| 外设 | Brown-out Detect/Reset, POR, PWM, WDT | 特殊I/O | N/A |
| 架构 | RISC | 连接性 | I²C, IrDA, LIN, SCI, SPI, UART/USART |
| 可编程性 | Yes | 定时器数量 | 2 |
| 控制器系列 | :MSP430F2xx | 功能框图 | fbd_slas504g.gif |
| 射频系列/标准 | MSP430 | 使用的IC/零件 | View |
| DigiKey可编程 | Yes | 印刷电路板数量 | 38 |
| A/D转换器数量 | :12 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40 to 85 °C |
| 结工作温度 | 85C | ||
