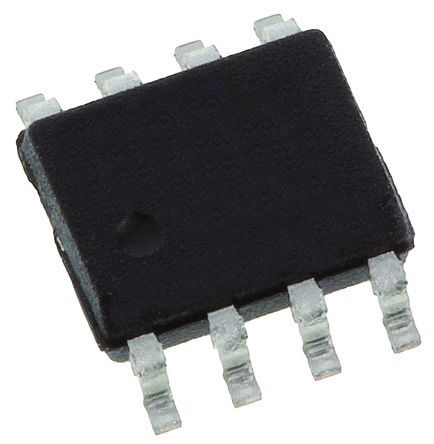

INA122U
| 制造商 | Texas Instruments Incorporated |
| 描述 | SP Amp INSTR Amp Single R-R O/P ±18V/36V 8-Pin SOIC Tube Instrumentation Amplifiers Single Supply MicroPower IC OPAMP INSTR 120KHZ 8SOIC INA122U, Instrumention Amplifier, 0.25mV Offset, 83dB CMRR, Rail-Rail Output, 5V, 8-Pin SOIC SP Amp INSTR Amp Single R-R O/P �18V/36V 8-Pin SOIC Tube IC, AMP INSTRUMENTATION, SOIC8, 122 Single Supply, MicroPower Instrumentation Amplifier Texas Instruments 仪表放大器, 0.25mV偏置, 83dB CMRR, 轨至轨输出, 5 V电源, 8针 SOIC封装 |
| 分类 |
商业参数
| 产品类别 | Instrumentation Amplifiers | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 75 | 标准封装名称 | SOIC |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423300 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 增益 | 80 dB | 电源抑制比 | 100 dB |
| 输出端 | :Rail to Rail | 压摆率 | 0.16 V/µs |
| 输出类型 | Differential|Rail to Rail | 输入功率 | Single/Dual |
| 共模抑制比、电源抑制比（典型） | 83dB | 输出电流 | 0.085 mA |
| 供电电流 | 0.085 mA | 供电电压 | 2.2 V |
| 供电类型 | Single|Dual | 通道数量 | 1 |
| 元件数量 | 2 | 输入电阻 | 10000 MOhms |
| 非易失性存储器 | 0.002 | 输入偏置电流 | 10nA |
| 最大额定电流 | Catalog | 噪声（10Hz至10kHz） | 60 |
| ADC/DAC 数量 | :1 | 最小输入电压 | 80(Typ) dB |
| 增益带宽积 | 120 KHz | 轨到轨工作 | Rail to Rail Output |
| 静态电流 (Iq) | 0.06 | 输入偏置电流（最大） | 0.025@5V |
| 输出电流/通道 | 30mA | 供电电压 (Vcc/Vdd) | 36 |
| 输入失调电压（最大） | 0.25mV | 共模瞬态抗扰度（最小） | 83 dB |
机械参数
| 宽度 | 3.91mm | 高度 | 1.58mm |
| 长度 | 4.9mm | 重量 | 0.002677 oz |
| 带宽 | :120kHz | 包装方式 | Tube |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | -3dB带宽 | 120kHz |
| 安装样式 | SMD/SMT | 引脚数 | :8 |
| 封装形式 | 8SOIC | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 5(Max) |
| 包装数量 | SOIC | 尺寸/外形 | 4.9 x 3.91 x 1.58mm |
| 位数 | 8 | 外壳尺寸-插件 | 1.5(Max) |
| 供应商器件封装 | 8-SOIC | ||
产品信息
| 类型 | Instrumentation Amplifier | 系列 | INA122 |
| 软件 | SBOS069 | 基本单元 | :122 |
| 放大器类型 | Instrumentation | 电路数 | 1 |
| 使用的IC/零件 | View | 其他规格 | :3µV/°C |
| 印刷电路板数量 | 8 | 可编程特性 | :10000 |
环境参数
| 工作温度 | -40 to 85 °C | ||
