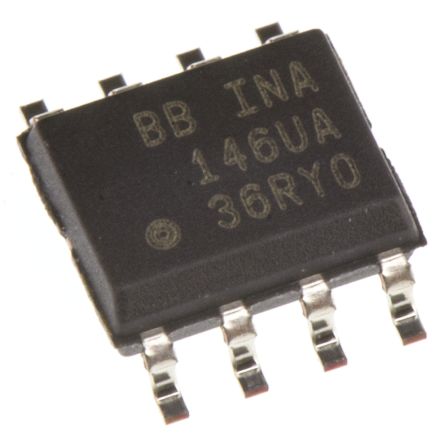

INA146UA

点击放大查看

INA146UA

制造商
Texas Instruments Incorporated
描述SP Amp DIFF AMP Single ±18V/36V 8-Pin SOIC Tube IC OPAMP DIFF 550KHZ 8SOIC INA146UA, Differential Amplifier 5, 9, 12, 15, 18, 24, 28V 8-Pin SOIC Differential Amplifiers High-Voltage Programmable Gain SP Amp DIFF AMP Single �18V/36V 8-Pin SOIC Tube AMP DIFF HIGH VOLT, SMD, SOIC8, 146 IC, DIFF AMP, 550kHZ, 0.45V/ uS, SOIC-8 Operational amplifier; 550kHz; 4.5÷36VDC; Channels:1; SO8 High-Voltage, Programmable Gain Difference Amplifier Differential Amplifier SO-8, INA146, INA146UA, Texas Instruments 差分放大器, 12 V, 15 V, 18 V, 24 V, 28 V, 5 V, 9 V, 8引脚 SOIC封装
分类
集成电路放大器与比较器视频预放大器
对参数有疑问？问 AI 助手

商业参数

产品类别Differential Amplifiers标准包装数量Rail / Tube
工厂包装数量75标准封装名称SOIC

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85423300
零件状态:146抗辐射加固No

电气参数

增益0.1 V/V to 100 V/V压摆率0.45 V/µs
输出类型No输入功率Single/Dual
上升时间（典型）450mV/μs共模抑制比、电源抑制比（典型）70dB
输出电流570µA供电电压4.5 V
供电类型Single|Dual通道数量1
元件数量2输入电阻0.11MΩ
输入偏置电流50nA最大额定电流Catalog
ADC/DAC 数量:1最小输入电压40(Typ) dB
增益带宽积0.05 MHz轨到轨工作No
静态电流 (Iq)0.6输入偏置电流（最大）0.05@5V
输出电流/通道15mA供电电压 (Vcc/Vdd)36
频段（低/高）550kHz输入失调电压（最大）10mV
共模瞬态抗扰度（最小）Extended Industrial

机械参数

宽度3.91mm高度1.58mm
长度4.9mm重量0.002677 oz
带宽:550kHz包装方式Tube
引脚样式Gull-wing端接方式:SMD
安装类型Surface Mount-3dB带宽550kHz
安装样式SMD/SMT引脚数:8
封装形式8SOIC冷却的封装SOIC
材料表面处理:MSL 3 - 168 hours总长度5(Max)
包装数量SOIC尺寸/外形4.9 x 3.91 x 1.58mm
位数8外壳尺寸-插件1.5(Max)
供应商器件封装8-SOIC

产品信息

SPG75类型Differential Amplifier
系列INA146软件SBOS109
基本单元:146放大器类型Differential
图案编号Y单元数量1
电路数1使用的IC/零件View
其他规格:High Voltage印刷电路板数量8
可编程特性:100

环境参数

测试温度-40 to 85工作温度-40 to 85 °C

文档与媒体

PDF 文档
ina146.pdf
在线文档
INA146
在线文档
sbos109
在线文档
ina146
