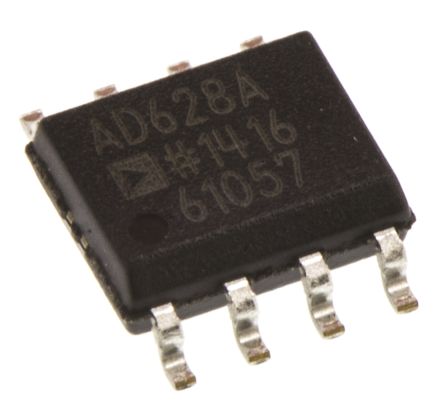

AD628ARZ
| 制造商 | Analog Devices, Inc. |
| 描述 | SP Amp DIFF AMP Dual ±18V/36V 8-Pin SOIC N IC OPAMP CURR SENSE 600KHZ 8SOIC AD628ARZ, Differential Amplifier 5, 9, 12, 15, 18, 24, 28V 2-channel 8-Pin SOIC N Differential Amplifiers Hi CM Vltg Gain Prog SP Amp DIFF AMP Dual �18V/36V 8-Pin SOIC N Tube SP Amp DIFF AMP Dual ±18V/36V 8-Pin SOIC N Tube IC, PROG GAIN DIFF AMP, 600KHZ, SOIC-8 Operational amplifier; 600kHz; 2.25÷36VDC; Channels:1; SO8 2通道 差分放大器, 5 V，9 V，12 V，15 V，18 V，24 V，28 V, 8引脚 SOIC封装 |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 98 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423300 | 抗辐射加固 | No |
电气参数
| 增益 | 0.1 V/V to 100 V/V | 电源抑制比 | 77 dB |
| 压摆率 | 0.3 V/µs | 输出类型 | No |
| 输入功率 | Single/Dual | 建立时间 | 40 us |
| 上升时间（典型） | 300mV/μs | 共模抑制比、电源抑制比（典型） | 75dB |
| 输出电流 | 1.6mA | 供电电压 | 4.5 V |
| 供电类型 | Single|Dual | 通道数量 | 2 |
| 元件数量 | 2 | 输入电阻 | 0.22MΩ |
| 输入偏置电流 | 1.5nA | ADC/DAC 数量 | :2 |
| 最小输入电压 | 40 dB | 频段（低/高） | 600kHz |
| 输入失调电压（最大） | 3mV | ||
机械参数
| 宽度 | 4mm | 高度 | 1.5mm |
| 长度 | 5mm | 重量 | 0.0001 |
| 带宽 | 600 kHz | 包装方式 | Tube |
| 尾部类型 | :- | 安装类型 | Surface Mount |
| -3dB带宽 | 600kHz | 安装样式 | SMD/SMT |
| 引脚数 | :8 | 封装形式 | 8SOIC N |
| 冷却的封装 | SOIC N | 材料表面处理 | :MSL 1 - Unlimited |
| 包装数量 | 3 | 尺寸/外形 | 5 x 4 x 1.5mm |
| 位数 | 8 | 供应商器件封装 | 8-SOIC N |
产品信息
| SPG | 3 | 类型 | Differential Amplifier |
| 系列 | AD628 | 放大器类型 | Current Sense |
| 单元数量 | 1 | 电路数 | 1 |
环境参数
| 工作温度 | -40 to 85 °C | ||
