DRV101T
| 制造商 | |
| 描述 | PWM Solenoid/Valve Driver 7-Pin(7+Tab) PFM Tube Motor Speed Controller 24V 7-Pin(7+Tab) PFM Tube IC MOTOR DRIVER PWM TO220-7 Motor / Motion / Ignition Controllers & Drivers PWM Solenoid/Valve DRIVER, SOLENOID, PWM, TO-220-7, 101 PWM Solenoid/Valve Driver |
| 分类 |
商业参数
| 产品 | Electromechanical Drivers | 产品类别 | Motor / Motion / Ignition Controllers & Drivers |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 50 |
| 标准封装名称 | PFM | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423990 |
| 零件状态 | :101 | 抗辐射加固 | No |
电气参数
| 输入类型 | Non-Inverting | 负载电压 | 9 V to 60 V |
| 额定电压 | :800mV | 输出电流 | 2.3 A |
| 供电电压 | 9 V ~ 60 V | 输出数量 | 1 |
| 最大额定电流 | Catalog | 峰值输出电流 | 3A |
| 导通电阻 Rds(on) (最大) @ Id, Vgs | 0.8 | 输出电压（最大） | :1V |
| 最小供电电压 | 9 V | 输出电流/通道 | 2.3A |
| 供电电压 (Vcc/Vdd) | 60 | 共模瞬态抗扰度（最小） | Industrial |
机械参数
| 宽度 | 8.34 | 重量 | 0.002 |
| 包装方式 | Tube | 插片宽度 | Tab |
| 封装体颜色 | :TO-220 | 端接方式 | :Through Hole |
| 安装类型 | Through Hole | 安装样式 | Through Hole |
| 引脚数 | :7 | 封装形式 | 7PFM |
| 冷却的封装 | TO-220 | 材料表面处理 | :- |
| 总长度 | 10.16 | 包装数量 | PFM |
| 位数 | 7 | 外壳尺寸-插件 | 4.6 |
| 供应商器件封装 | TO-220-7 | ||
产品信息
| 类型 | Motor Speed Controller | 系列 | DRV101 |
| 软件 | SBVS008B | 基本单元 | :101 |
| 使用的IC/零件 | View | 印刷电路板数量 | 7 |
环境参数
| 工作温度 | -40 to 85 °C | 结工作温度 | 85C |
文档与媒体
相关型号
DRV101T
texas instruments
PWM Solenoid/Valve Driver 7-Pin(7+Tab) PFM Tube Motor Speed Controller 24V 7-Pin(7+Tab) PFM Tube IC MOTOR DRIVER PWM TO220-7 Motor / Motion / Ignition Controllers & Drivers PWM Solenoid/Valve DRIVER, SOLENOID, PWM, TO-220-7, 101 PWM Solenoid/Valve Driver
DRV102FKTWT
texas instruments

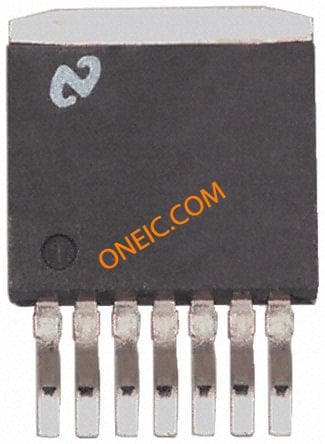

PWM Solenoid/Valve Driver 8-Pin(7+Tab) PFM T/R Motor Speed Controller 24V 8-Pin(7+Tab) TO-263 T/R IC MOTOR DRIVER PWM 7DDPAK DRV102FKTWT, Motor Driver,, 7, 8-Pin PFM Motor / Motion / Ignition Controllers & Drivers PWM Solenoid/ Valve Driver CONTROLLER, PWM, SMD, PFM-7, 102 PWM Solenoid/Valve Driver PWM Solenoid/Valve Driver 7-Pin D2PAK
