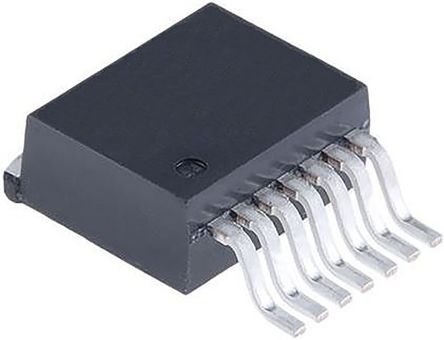

DRV102FKTWT
| 制造商 | |
| 描述 | PWM Solenoid/Valve Driver 8-Pin(7+Tab) PFM T/R Motor Speed Controller 24V 8-Pin(7+Tab) TO-263 T/R IC MOTOR DRIVER PWM 7DDPAK DRV102FKTWT, Motor Driver,, 7, 8-Pin PFM Motor / Motion / Ignition Controllers & Drivers PWM Solenoid/ Valve Driver CONTROLLER, PWM, SMD, PFM-7, 102 PWM Solenoid/Valve Driver PWM Solenoid/Valve Driver 7-Pin D2PAK |
| 分类 |
商业参数
| 产品 | Electromechanical Drivers | 其他名称 | 296-15964-2 |
| 产品类别 | Motor / Motion / Ignition Controllers & Drivers | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 50 | 标准封装名称 | D2PAK |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
电气参数
| 频率 | :24kHz | 输入类型 | Non-Inverting |
| 负载电压 | 8 V to 60 V | 额定电压 | :1.7V |
| 输出电流 | 2.7 A | 供电电压 | 8 V ~ 60 V |
| 输出数量 | 1 | 最大额定电流 | Catalog |
| 峰值输出电流 | 3.4A | 最小供电电压 | 8 V |
| 输出电流/通道 | 2.7A | 供电电压 (Vcc/Vdd) | 60 |
| 共模瞬态抗扰度（最小） | Military | ||
机械参数
| 宽度 | 8.89mm | 高度 | 4.44mm |
| 长度 | 10.1mm | 重量 | 0.001 |
| 包装方式 | Tape and Reel | 插片宽度 | Tab |
| 封装体颜色 | :TO-263 | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :7 |
| 封装形式 | 8PFM | 冷却的封装 | PFM |
| 材料表面处理 | :MSL 3 - 168 hours | 总长度 | 10.41(Max) |
| 包装数量 | TO-263 | 尺寸/外形 | 10.1 x 8.89 x 4.44mm |
| 位数 | 8 | 外壳尺寸-插件 | 4.65(Max) |
| 供应商器件封装 | DDPAK/TO-263-7 | ||
产品信息
| 类型 | Motor Speed Controller | 系列 | DRV102 |
| 软件 | SBVS009B | 基本单元 | :102 |
| 控制器类型 | :PWM | 使用的IC/零件 | View |
| 印刷电路板数量 | 7 | ||
环境参数
| 工作温度 | -55 to 125 °C | 结工作温度 | 125C |
文档与媒体
