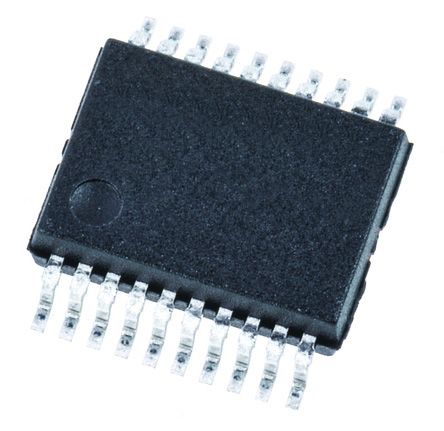

ADS8344NB

制造商	Texas Instruments Incorporated
描述	ADC Single SAR 100ksps 16-bit Serial 20-Pin SSOP Tube Analog to Digital Converters - ADC 16-Bit 8-Ch Serial Output Sampling Single ADC SAR 100ksps 16-bit Serial 20-Pin SSOP Tube IC 16-BIT 8-CH A/D CONV 20-SSOP 16BIT ADC, SERIAL O/P, SMD, 8344 16-Bit, 8-Channel Serial Output Sampling Analog-to-Digital Converter Texas Instruments , 16 位 ADC, 差分输入, 串行接口, 20针 SSOP封装
分类	集成电路数据转换器模数转换器

对参数有疑问？问 AI 助手

商业参数

产品类别	Analog to Digital Converters - ADC	标准包装数量	Rail / Tube
工厂包装数量	70	标准封装名称	SSOP

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85423190
零件状态	:8344	抗辐射加固	No

电气参数

接口	Serial (4-Wire)	线性度	�2LSB
信噪比	86	输入类型	Voltage
分辨率	16 Bit	输入信号	Single-Ended\|Differential
INL/DNL（LSB）	8LSB	输入功率	Single
额定功率	10 W	转换器类型	General Purpose
数据接口	Serial	输入极性	Unipolar
位数	16	基准类型	Ext
额定电压	2.7V/5V	数据速率（最大）	100 KSPs
额定电压值	2.7/5	输出电流	:1.5mA
输入数量	8	供电电压	2.7 V to 5 V
分辨率（位）	:16bit	电压基准	External
通道数量	8/4	元件数量	1
采样频率	100 ksps	模拟输入/输出	5.25
最大额定电流	Catalog	ADC/DAC 数量	1
供电电源	Single	平均正向功率	3.6
最大功耗	10 mW	差分非线性	±2LSB
数字供电电压	5.25	内部供电电压	:2.7V to 3.6V, 4.75V to 5.25V
采样率（每秒）	100k	差分 - 输入:输出	Yes
电源电压范围（典型）	Not Required V	信噪比，ADC/DAC（dB）典型值	Yes

机械参数

宽度	5.6(Max)	重量	0.005527 oz
包装方式	Tube	引脚样式	Gull-wing
端接方式	:SMD	安装类型	Surface Mount
安装样式	SMD/SMT	引脚数	:20
封装形式	20SSOP	冷却的封装	SSOP
材料表面处理	:MSL 2 - 1 year	总长度	7.5(Max)
包装数量	SSOP	位数	20
外壳尺寸-插件	2(Max) - 0.05(Min)	供应商器件封装	20-SSOP

产品信息

系列	ADS8344	软件	SBAS139E
基本单元	:8344	架构	SAR
功能框图	fbd_sbas139e.gif	使用的IC/零件	View
印刷电路板数量	20	A/D转换器数量	8\|4
输入数量及类型	8 Single-Ended, Unipolar; 4 Differential, Unipolar

环境参数

测试温度

-40 to 85

工作温度

+ 85 C

文档与媒体

PDF 文档

ADS8344

PDF 文档

1748669.pdf

相关型号

ADS8326IBDGKT

texas instruments

ADC Single SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC 16BIT SAMPLING 8VSSOP Analog to Digital Converters - ADC 16B Pseudo Diff Input A/D CONVERTER, 16BIT NMC, SAR, SMD A/D converter; Channels:1; 16bit; 250ksps; 2.7÷5.5VDC; MSOP8 16-Bit, Pseudo Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装

¥63.4200

详情

ADS8345NBG4

texas instruments

ADC Single SAR 100ksps 16-bit Serial 20-Pin SSOP Tube Single ADC SAR 100ksps 16-bit Serial 20-Pin SSOP Tube IC ADC 16BIT 8CH 20-SSOP ADS8345NBG4, 16-Bit Analogue to Digital Converter, Differential, Serial, 20-Pin SSOP Analog to Digital Converters - ADC 16-Bit 8-Ch Serial Output Sampling 16BIT ADC, SERIAL O/P, SMD, 8345 16-Bit, 8-Channel Serial Output Sampling Analog-to-Digital Converter

¥99.6600

详情

OPA132U

texas instruments

OP Amp Single GP ±18V 8-Pin SOIC Tube IC OPAMP GP 8MHZ 8SOIC High Speed Operational Amplifiers High Speed FET-Input Oper Amplifier OP Amp Single GP �18V 8-Pin SOIC Tube IC, OP-AMP, 8MHZ, 20V/ us, SOIC-8 OP-AMP, PRECISION, 8MHZ, 20V/US, SOIC-8 High Speed FET-Input Operational Amplifiers Operational Amplifier Single 8 MHz SO-8, OPA132U, Texas Instruments Texas Instruments 运算放大器, 8MHz, 8针 SOIC Operational Amplifiers - Op Amps High Speed FET-Input Oper Amplifier

¥18.1200

详情

ADS8317IDGKT

texas instruments

ADC Single SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC 16BIT SAMPLING HS 8VSSOP Analog to Digital Converters - ADC 16B 200kSPS Ser Out 2.7-5.5V Micro Pwr IC, ADC 16BIT SAMPLING HS 8-MSOP 16-Bit, Pseudo Bipolar, Fully Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装

¥54.3600

详情

ADS8343EBG4

texas instruments

ADC Single SAR 100ksps 16-bit Serial 16-Pin SSOP Tube Single ADC SAR 100ksps 16-bit Serial 16-Pin SSOP Tube IC ADC CONV 4-CH SERIAL 16SSOP ADS8343EBG4, 16-Bit Analogue to Digital Converter, Differential, Serial, 16-Pin QSOP, SSOP Analog to Digital Converters - ADC 16-Bit 4-Ch Serial Output Sampling 16-Bit, 4-Channel Serial Output Sampling Analog-To-Digital Converter

¥59.5000

详情

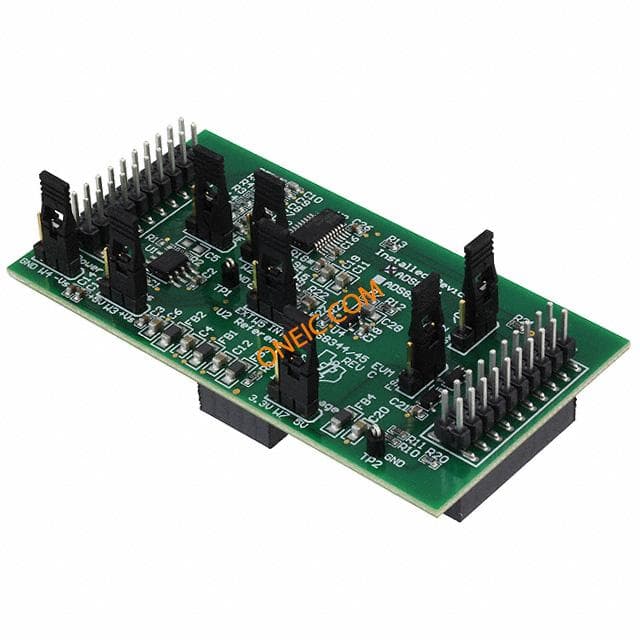

ADS8344EVM
