ADS8345NBG4
| 制造商 | Texas Instruments Incorporated |
| 描述 | ADC Single SAR 100ksps 16-bit Serial 20-Pin SSOP Tube Single ADC SAR 100ksps 16-bit Serial 20-Pin SSOP Tube IC ADC 16BIT 8CH 20-SSOP ADS8345NBG4, 16-Bit Analogue to Digital Converter, Differential, Serial, 20-Pin SSOP Analog to Digital Converters - ADC 16-Bit 8-Ch Serial Output Sampling 16BIT ADC, SERIAL O/P, SMD, 8345 16-Bit, 8-Channel Serial Output Sampling Analog-to-Digital Converter |
| 分类 |
商业参数
| 产品类别 | Analog to Digital Converters - ADC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 70 | 标准封装名称 | SSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | :8345 | 抗辐射加固 | No |
电气参数
| 接口 | Serial (4-Wire) | 线性度 | �2LSB |
| 信噪比 | 85 | 输入类型 | Voltage |
| 分辨率 | 16 Bit | 输入信号 | Pseudo-Differential|Differential |
| INL/DNL（LSB） | ±6LSB | 输入功率 | Single |
| 额定功率 | 10 W | 转换器类型 | General Purpose |
| 数据接口 | Serial | 输入极性 | Bipolar |
| 位数 | 16 | 基准类型 | Ext |
| 额定电压 | ±1.25V/±2.5V | 数据速率（最大） | 100 KSPs |
| 采样保持与ADC比率（如1:2） | Yes | 额定电压值 | �1.25/�2.5 |
| 输出电流 | :1.5mA | 输入数量 | 8 |
| 供电电压 | 3.3 V, 5 V | 分辨率（位） | :16bit |
| 电压基准 | External | 通道数量 | 8 Channel/4 Channel |
| 元件数量 | 1 | 采样频率 | 100 ksps |
| 模拟输入/输出 | 5.25 | 最大额定电流 | Catalog |
| ADC/DAC 数量 | 1 | 供电电源 | Single |
| 平均正向功率 | 3.6 | 最大功耗 | 10 mW |
| 差分非线性 | ±2LSB | 数字供电电压 | 5.25 |
| 内部供电电压 | :2.7V to 3.6V, 4.75V to 5.25V | 采样率（每秒） | 100k |
| 差分 - 输入:输出 | Yes | 电源电压范围（典型） | Not Required V |
| 信噪比，ADC/DAC（dB）典型值 | No | ||
机械参数
| 宽度 | 5.3mm | 高度 | 1.95mm |
| 长度 | 7.2mm | 重量 | 0.005527 oz |
| 包装方式 | Tube | 引脚样式 | Gull-wing |
| 端接方式 | :SMD | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :20 |
| 封装形式 | 20SSOP | 冷却的封装 | SSOP |
| 材料表面处理 | :MSL 2 - 1 year | 总长度 | 7.5(Max) |
| 包装数量 | SSOP | 尺寸/外形 | 7.2 x 5.3 x 1.95mm |
| 位数 | 20 | 外壳尺寸-插件 | 2(Max) - 0.05(Min) |
| 供应商器件封装 | 20-SSOP | ||
产品信息
| 系列 | ADS8345 | 软件 | SBAS177C |
| 基本单元 | :8345 | 架构 | SAR |
| 放大器类型 | :High Speed | 功能框图 | fbd_sbas177c.gif |
| 使用的IC/零件 | View | 印刷电路板数量 | 20 |
| A/D转换器数量 | 8|4 | 输入数量及类型 | 8 Single-Ended, Bipolar; 4 Differential, Bipolar |
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
SN74LVC1G07DBVR
texas instruments
Buffer/Driver 1-CH Non-Inverting Open Drain CMOS 5-Pin SOT-23 T/R IC BUFF/DVR NON-INVERT SOT23-5 Buffers & Line Drivers Single w/ OD IC, NON INVERTING BUFFER, SOT-23-5 Single Buffer/Driver With Open-Drain Output Logic IC SOT-23-5, SN74LVC1G07, SN74LVC1G07DBVR, Texas Instruments Texas Instruments 74LVC 系列 漏极开路 非反相 缓冲器/驱动器 , 5针 SOT-23封装
ADS8325IDGKT
texas instruments
ADC Single SAR 100ksps 16-bit Serial 8-Pin VSSOP T/R Analog to Digital Converters - ADC 16-Bit 100kSPS Serial Out Single ADC SAR 100ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC MICPWR SMPL 16BIT 8VSSOP IC, 16BIT ADC, 100KSPS, SMD, MSOP8 16-Bit, 100kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装
ADS8326IBDGKT
texas instruments
ADC Single SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC 16BIT SAMPLING 8VSSOP Analog to Digital Converters - ADC 16B Pseudo Diff Input A/D CONVERTER, 16BIT NMC, SAR, SMD A/D converter; Channels:1; 16bit; 250ksps; 2.7÷5.5VDC; MSOP8 16-Bit, Pseudo Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装
ADS8345EVM
texas instruments

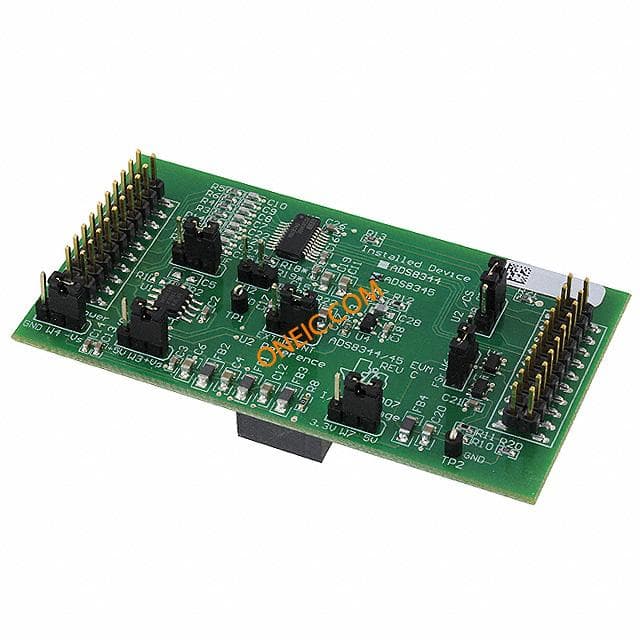

Evaluation Module For ADS8345 Data Conversion IC Development Tools ADS8345 Eval Mod EVAL MOD FOR ADS8345
OPA132U
texas instruments
OP Amp Single GP ±18V 8-Pin SOIC Tube IC OPAMP GP 8MHZ 8SOIC High Speed Operational Amplifiers High Speed FET-Input Oper Amplifier OP Amp Single GP �18V 8-Pin SOIC Tube IC, OP-AMP, 8MHZ, 20V/ us, SOIC-8 OP-AMP, PRECISION, 8MHZ, 20V/US, SOIC-8 High Speed FET-Input Operational Amplifiers Operational Amplifier Single 8 MHz SO-8, OPA132U, Texas Instruments Texas Instruments 运算放大器, 8MHz, 8针 SOIC Operational Amplifiers - Op Amps High Speed FET-Input Oper Amplifier
LOG114AIRGVT
texas instruments

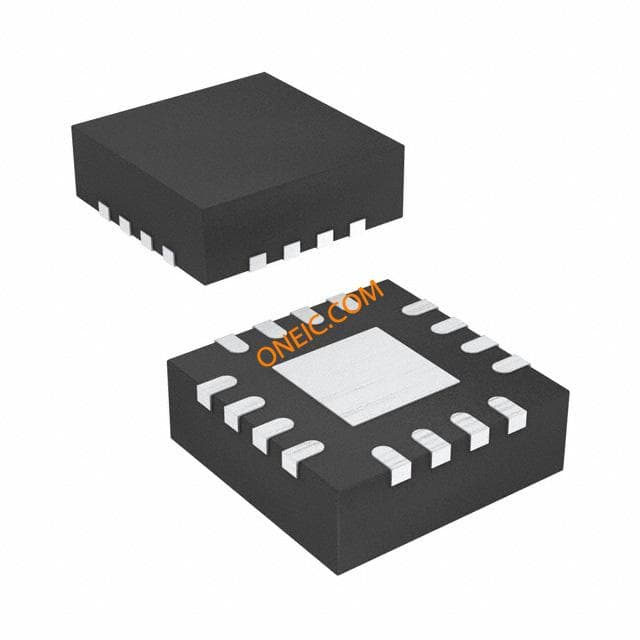

SP Amp LOG Amp Quint 16-Pin VQFN EP T/R IC OPAMP LOG 15MHZ 16VQFN Logarithmic Amplifiers Precision High-Speed IC, OP-AMP LOGAR 15MHZ SGL 16VQFN Precision High-Speed Logarithmic Amplifier with 2.5V Reference and Uncommitted Output Op Amps 对数放大器, 5 V, 差分输出, 16针 VQFN封装
