ADS8326IBDGKT

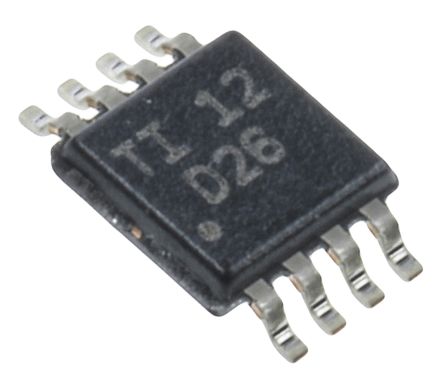

点击放大查看

ADS8326IBDGKT

制造商
Texas Instruments Incorporated
描述ADC Single SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R Single ADC SAR 250ksps 16-bit Serial 8-Pin VSSOP T/R IC ADC 16BIT SAMPLING 8VSSOP Analog to Digital Converters - ADC 16B Pseudo Diff Input A/D CONVERTER, 16BIT NMC, SAR, SMD A/D converter; Channels:1; 16bit; 250ksps; 2.7÷5.5VDC; MSOP8 16-Bit, Pseudo Diff Input, 250kSPS Serial Out, 2.7V to 5.5V Micro Power Sampling ADC Texas Instruments , 16 位 ADC, 差分输入, SPI接口, 8针 MSOP封装
分类
集成电路数据转换器模数转换器
对参数有疑问？问 AI 助手

商业参数

其他名称296-21946-2产品类别Analog to Digital Converters - ADC
标准包装数量Tape & Reel工厂包装数量250
标准封装名称SSOP

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85423190
零件状态ACTIVE抗辐射加固No

电气参数

精度1.5LSB接口Serial (3-Wire, SPI)
线性度�1LSB信噪比91.5(Typ) dB
输入类型Voltage分辨率16 Bit
输入信号Pseudo-DifferentialINL/DNL（LSB）±2.5LSB
输入功率Single额定功率15 W
转换器类型General Purpose数据接口Serial, SPI™
输入极性Unipolar位数16
基准类型Ext额定电压2.5V/5V
数据速率（最大）250 KSPs采样保持与ADC比率（如1:2）Yes
额定电压值2.5/5输出电流:2mA
输入数量1供电电压2.7 V to 5.5 V
分辨率（位）:16bit电压基准External
通道数量1 Channel元件数量1
采样频率250 ksps模拟输入/输出5.5
最大额定电流CatalogADC/DAC 数量1
供电电源Single上升/下降时间（典型）:666.7µs
平均正向功率10最大功耗15 mW
差分非线性±1LSB数字供电电压:2.7V to 3.6V, 4.5V to 5.5V
内部供电电压:2.7V to 3.6V, 4.5V to 5.5V采样率（每秒）250k
差分 - 输入:输出Yes电源电压范围（典型）Not Required V
信噪比，ADC/DAC（dB）典型值91.5 dB

机械参数

宽度3.1(Max)重量0.000935 oz
包装方式Tape and Reel引脚样式Gull-wing
端接方式:SMD安装类型Surface Mount
安装样式SMD/SMT引脚数:8
封装形式8VSSOP冷却的封装VSSOP
材料表面处理:MSL 2 - 1 year总长度3.1(Max)
包装数量VSSOP位数8
外壳尺寸-插件0.95(Max)供应商器件封装8-VSSOP

产品信息

SPG250类型A/D converter
系列ADS8326产品特性micropower
软件SBAS343C基本单元:8326
架构SAR单元数量1
功能框图fbd_sbas343c.gif使用的IC/零件View
印刷电路板数量8A/D转换器数量1
输入数量及类型2 Single-Ended, Bipolar; 1 Differential, Bipolar
