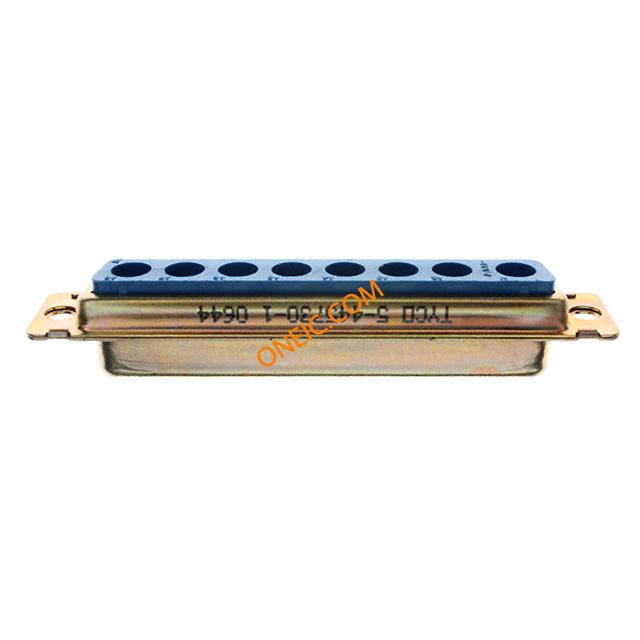

5-445730-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN D-SUB RCPT HSING 8C8 MIX Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 RECPT ASSY,SZ 4,COAX 8C8 |
| 分类 |
商业参数
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 资质认证 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 连接器阻抗 | Yes | 连接器类型 - 电压输入 | No |
机械参数
| 颜色 | Blue | 外形尺寸(长x宽) | 4 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 外壳尺寸 | 4 | 触点尺寸 | 20 |
| 触头类型 | Coax or Power | 非磁性 | No |
| 外壳表面处理 | 补充铬 (Cr3+) 镀锌 | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Zinc | 端子尺寸 | 8 |
| 连接器类型 | Receptacle for Female Contacts | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Mounting Holes | 排数 | 1 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, Combo |
| 插入角度 | 8C8 | 壳体材料 | 钢 |
| 连接器 - 电缆 | 是 | 端接样式 | 插座 |
| 介电材料 | Polyester, Glass Filled | 位数 | 8 (Coax or Power) |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 [.120] |
| 外壳镀层厚度 | 200µin (5.08µm) | 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc |
| 外壳尺寸，连接器布局 | 4 (DC, C) - 8W8 | ||
产品信息
| 备注 | Cable clamp/strain relief hardware cannot be used with these arrangements. | 连接器性别 | Receptacle |
| 系列 | 109 | 密度 | Standard |
| 排列方式 | 8C8 | 插座类型 | Without |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | Coaxial Cable, Printed Circuit Board, Wire | ||
