点击放大查看

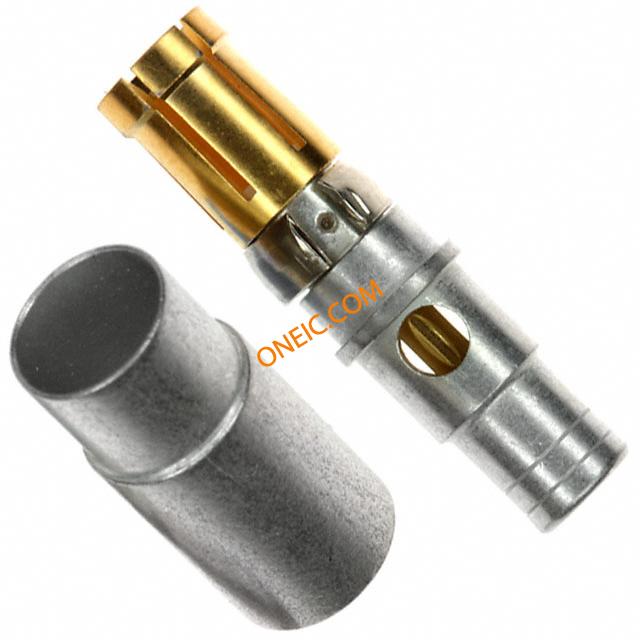

5-228596-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount D-Sub Contacts SKT RG-142/400/B9246 Multiple Coaxial Contacts (COAXICON) CONN SOCKET COAX SIZE8 RG142/400 SOCKET,STR,SIZE 8,AMPLIMITE SOCKET,STR,SIZE 8,AMPLIMITE Search Keywords:RF, multi position, |
| 分类 |
商业参数
| 标准包装规格 | 1 | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 输入端 | 30 | 阻抗 | Non-Matched |
| 连接器阻抗 | 不匹配 | ||
机械参数
| 包装方式 | Bulk | 电缆类型 | RG 400, Belden 9246, RG 142, RG 142A, RG 142B, RG 58A |
| 导线线规 | Coaxial Cable | 端接方式 | Crimp |
| 触点形式 | Machined | 触点尺寸 | 8 |
| 触头类型 | Coaxial | 外壳表面处理 | 锡 |
| 插针或插孔 | Socket | 外壳镀层 | Tin |
| 端子尺寸 | 8 | 连接器类型 | Connector RF |
| 接触镀层 | Gold | 外壳材料（壳体） | Brass per QQ-B-626 and MIL-C-50 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 套圈材料 | Tin | 壳体材料 | 黄铜 |
| 主要材料 | 直式 | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 接触件端接 | Crimp |
| 中心触点表面处理 | 金 | 端子螺钉表面处理 | 金 |
| 中心触点镀层工艺 | Gold [30] | 中心触点材料 | Brass per QQ-B-626 and MIL-C-50 |
| 供应商器件封装 | AMP-HDI, Subminiature D Series 109 | 接触镀层厚度 | 30µin (0.76µm) |
| 触点材料 - 配合 | Without | ||
产品信息
| 备注 | Non-Impedance Matched and 50 Ohm are not intermatable. | 类型 | Coaxial |
| 连接器性别 | SKT | 制造商全称 | AMP |
| 产品子类型 | Contact | 连接类型 | Coaxial Cable |
