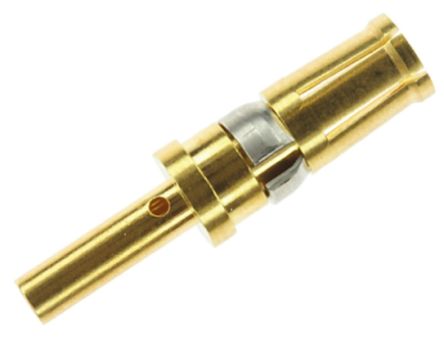

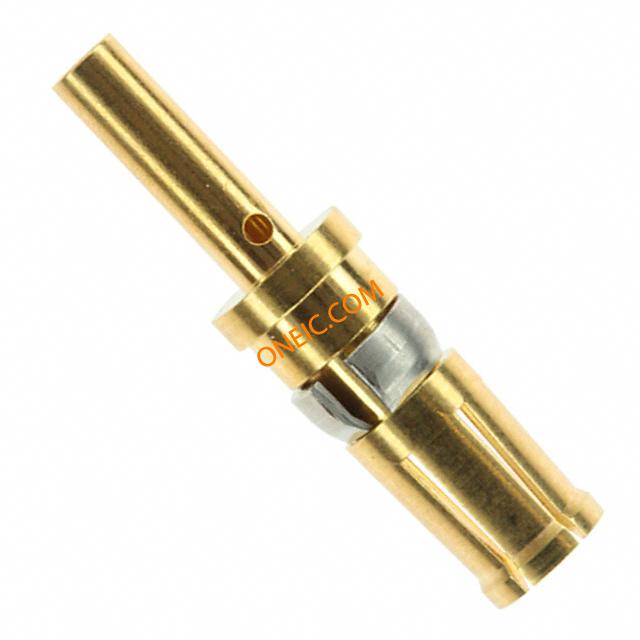

212014-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece D-Sub Contacts SOCKET 18-16 AWG Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN SOCKET 16-18AWG CRIMP GOLD AMPLIMITE 109 power VIII socket contact Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Density = StandardTerminate To WireSocketSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONTACT,SOCKET,PWR8 TE Connectivity AMPLIMITE 109 power VIII系列 尺寸8触点 母 压接 功率 D-Sub 连接器电源触点, 镀金镀镍 触点, 18 → 16 AWG CONTACT,SKT,PWR 8 |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant By Exemption | 抗辐射加固 | No |
| 资质认证 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 连接器阻抗 | 压接 | 连接器类型 - 电压输入 | Crimp |
| 输出高/低电流 | No | ||
机械参数
| 深度 | 5.44 mm | 间距 | Not Required mm |
| 长度 | 21.84mm | 材料（通用） | Phosphor-Bronze |
| 包装方式 | Bulk | 导线线规 | 18-16 |
| 端接方式 | Crimp | 触点形式 | Machined |
| 触点尺寸 | 8 | 触头类型 | Power |
| 触点形状 | Machined | 安装类型 | Straight |
| 端子尺寸 | 8 | 连接器类型 | Connector D-Subminiature |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 插入件材料 | 铜合金 | 触头材料 | Beryllium Copper|Phosphor Bronze |
| 壳体材料 | Not Required | 包装数量 | Loose Piece |
| 主要材料 | Contact | 端接排数 | 压接 |
| 绝缘高度 | No | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | 否 |
| 触点数 | Not Required | 接触件尾部长度 | 8 |
| 接触件端接 | Crimp | 绝缘直径 | .102 |
| 兼容外壳尺寸（如TM-700等） | AMPLIMITE | 接触镀层厚度 | 50µin (1.27µm) |
| 线规或范围 - AWG | 18-16 | 线规或范围 - mm² | 0.80-1.40² [18-16] |
| 触点材料 - 镀层 | GoldoverNickel | ||
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | 109 | 密度 | Standard |
| 制造商全称 | 109Series | 产品子类型 | Contact |
| 连接类型 | Wire | 端口数 | 1 Port |
| 适用产品/相关产品 | MIL-C-24308,MIL-C-39029 | ||
环境参数
| 工作温度 | -55C to 125C | ||
文档与媒体
相关型号
211112-1
te connectivity / amp
Conn D-Subminiature RCP 11 POS ST Thru-Hole 11Terminal D-Sub Mixed Contact Connectors RECPT ASSY SZ 2 50 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RECEPT 109 MIX 11C1 Conn Housing RCP 1Coaxial/10Signal POS Crimp ST Panel Mount Conn Housing RCP 1Coaxial/10Signal POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 11C1Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECEPT ASSY,SZ 2,AMPLIMITE
212542-2
te connectivity / amp
AMPLI,RCPT,ASSY,27C2,4,NM D-Sub Mixed Contact Connectors AMPLIMITE RCPT ASY 27C2 4 NM Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 27C2Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
208811-2
te connectivity / amp
Conn D-Subminiature RCP 3Power/13Signal POS Solder ST Cable Mount 16Terminal 1Port D-Sub Mixed Contact Connectors RCPT ASSY COAX MIX Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT 13C3 VERT Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Housing Gender = ReceptacleHousing Accepts Contact Type = SocketDensity = StandardSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
212526-1
te connectivity / amp
Conn D-Subminiature RCP 1Power/21Signal POS Solder ST Cable Mount 22Terminal 1Port D-Sub Mixed Contact Connectors RECEPT ASSY,21C1,AMP 25 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RECEPT 109 MIX 21C1 Conn Housing RCP 1Coaxial/21Signal POS Crimp ST Conn Housing RCP 1Coaxial/21Signal POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 21C1Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECEPT ASSY,21C1,AMPLIMITE
445705-1
te connectivity / amp
Conn D-Subminiature RCP 3 POS ST Thru-Hole 3Terminal D-Sub Mixed Contact Connectors COAX MIX 3C3 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT HSING 3C3 MIX Conn Housing RCP 3Coaxial POS Crimp ST Conn Housing RCP 3Coaxial POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 3C3Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE COAX MIX,3C3
5-208550-4
te connectivity / amp
Conn D-Subminiature RCP 4Power/36Signal POS Solder ST Cable Mount 40Terminal 1Port D-Sub Mixed Contact Connectors AMPLIMITE,ASY, RCPT,36C4,CS,5 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT HSING 36C4 MIX Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 36C4Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,ASY,RCPT,36C4,CS,5
318813-1
te connectivity / amp
Screw Machine Contacts Hand Tools EXTRACTION TOOL CONN EXTRACTION TOOL EXTRACTIONTOOLASSY EXTRACTION TOOL, POWER BAND Extraction tool, 318813-1, TE Connectivity TE Connectivity AMPLIMITE 系列 压接拔取工具 EXTRACTION TOOL ASSY
212526-6
te connectivity / amp
RECEPT ASSY,21C1,AMPLIMITE D-Sub Mixed Contact Connectors RCPT ASSY SZ3 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT 21C1 CRIMP Conn Housing RCP 1Coaxial/20Signal POS Crimp ST Panel Mount Conn Housing RCP 1Coaxial/20Signal POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Housing Gender = ReceptacleAccepts Contact Gender = SocketDensity = StandardSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
212059-3
te connectivity / amp
Conn D-Subminiature RCP 5Power/5Signal POS Solder ST Cable Mount 10Terminal 1Port D-Sub Mixed Contact Connectors RECPT ASSY,SZ 3,AMPL 100 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RECEPT 109 MIX 5C5 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 5C5Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECPT ASSY,SZ 3,AMPLIMITE COAX
212534-1
te connectivity / amp
Conn D-Subminiature RCP 4Power/21Signal POS Solder ST Cable Mount 25Terminal 1Port D-Sub Mixed Contact Connectors RCPT ASSY 21C4 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT HSING 21C4 MIX Conn Housing RCP 4Coaxial/17Signal POS Crimp ST Conn Housing RCP 4Coaxial/17Signal POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 21C4Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECEPT ASSY,21C4,AMPLIMITE
212510-2
te connectivity / amp
Conn Housing RCP 2Power/15Signal POS Crimp ST Cable Mount D-Sub Mixed Contact Connectors RECEPT ASSY SZ 17C2 AMPLIMITE Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Housing Gender = ReceptacleHousing Accepts Contact Type = SocketDensity = StandardSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
212502-2
TE Connectivity / AMP
D-Sub Mixed Contact Connectors RCPT ASSY 9C4 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 RECEPT ASSY,9C4,AMPLIMITE
445730-1
TE Connectivity / AMP
D-Sub Mixed Contact Connectors RCPT ASSY SZ 4 900 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT HSING 8C8 MIX RECPT ASSY,SZ 4,COAX 8C8
445705-4
TE Connectivity / AMP
D-Sub Mixed Contact Connectors RECEPT 109 MIX 3C3 350 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT HSING 3C3 MIX Conn Housing RCP 3Coaxial POS Crimp ST Conn Housing RCP 3Coaxial POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 3C3Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,ASY,RCPT,3C3,COAX
5-212526-1
te connectivity / amp
RECEPT ASSY,21C1,AMPLIMITE D-Sub Mixed Contact Connectors 21C1 RECPT, CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RECEPT 109 MIX 21C1 Conn Housing RCP 1Coaxial/21Signal POS Crimp ST Conn Housing RCP 1Coaxial/21Signal POS Crimp ST Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub
5-212059-1
te connectivity / amp
Conn D-Subminiature RCP 5Power/5Signal POS Solder ST Cable Mount 10Terminal 1Port D-Sub Mixed Contact Connectors 5G5 RECPT, CRIMP Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RECEPT 109 MIX 5C5 Conn Housing RCP 5Power/5Signal POS Crimp ST Conn Housing RCP 5Power/5Signal POS Crimp ST Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 5C5Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub RECPT ASSY,SZ 3,AMPLIMITE COAX
445730-7
te connectivity / amp
Conn Housing RCP 8Coaxial POS Crimp ST Panel Mount D-Sub Mixed Contact Connectors AMPLIMITE RCPT ASY 8C8 4 NM Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN D-SUB RCPT HSING 8C8 MIX Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To Coaxial Cable, Terminate To Printed Circuit Board, Terminate To WireInsert Arrangement = 8C8Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub AMPLIMITE,RCPT,ASY,8C8,4,NM
212534-2
te connectivity / amp
Conn D-Subminiature RCP 4Power/21Signal POS Solder ST Cable Mount 25Terminal 1Port D-Sub Mixed Contact Connectors ASSY RCPT 21C4 NM120 Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn Housing RCP 21 POS Crimp ST Panel Mount AMPLIMITE,ASY,RCPT,21C4,NM,120 AMPLIMITE,ASY,RCPT,21C4,NM,120 Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub

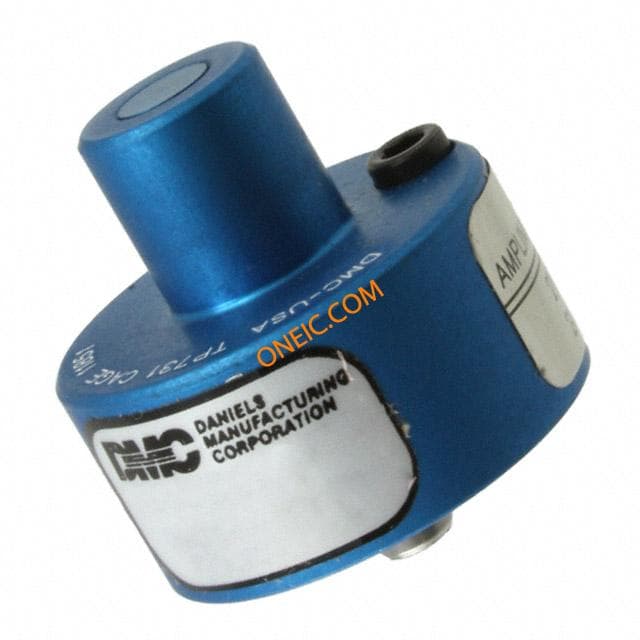

608668-2
