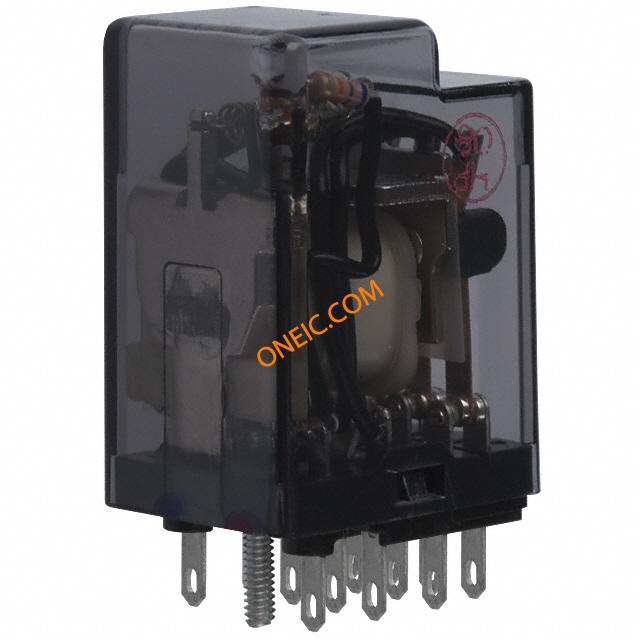

KHAU-17A12N-120
| 制造商 | TE Connectivity Ltd. |
| 描述 | General Purpose Relays Relay 4PDT 5A 120VAC RELAY GEN PURPOSE 4PDT 5A 120V Electromechanical Relay 4PDT 5A 120VAC 3.9KOhm Socket Electromechanical Relay 4PDT 5A 120VAC 3.9KOhm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 5 Amps.Monostable Coil Magnetic SystemInput Voltage = 120 VAC KHAU-17A12N-120=KH |
| 分类 |
商业参数
| 其他名称 | 3-1393122-4 | 零件号别名 | 3-1393122-4 |
| 产品类别 | General Purpose Relays | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS non-compliant | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 1.35 VA |
| 最大功率 | 1.35 | 线圈电流 | 11mA |
| 释放时间 | 6ms | 额定输出功率 | 1 – 2 |
| 核心电压 | 1000 – 1500 | 额定电压 | 240 |
| 线圈电阻 | 3900 Ohms | 浪涌电流 | 5 |
| 供电电压 | 120VAC | 开关电压 | 240VAC - Max |
| 连接器阻抗 | 4 Form C (CO) | 跳闸电流 | 5 |
| 最大额定电流 | 5 | 输出1频率 | 单稳态、交流 |
| 额定电流（安培） | 5 – 10, 16 | 绝缘电阻 | 1500 |
| 平均正向功率 | 1.2 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 102 VAC |
| 触点额定电流 | 5A | 输出源/灌电流 | 300mA @ 12V |
| 初始电阻（最小） | 100 | 放电电流（最大）（8/20µs） | 5 |
机械参数
| 宽度 | 21.8 mm | 高度 | 34.9 mm |
| 长度 | 28.2 mm | 重量 | 45 g [ 1.587 oz ] |
| 包装方式 | Bulk | 触点形式 | 4 Form C (4PDT-BM) |
| 高度（最大） | 30 – 40 | 致动器类型 | AC |
| 安装类型 | Socketable | 安装样式 | Socket |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | Plug In |
| 触点数 | 4 | 初级绕组 | UL 线圈绝缘类 B, 氖管指示灯, 电气指示灯 |
| 接触件端接 | Solder | 介电材料 | 1500 |
| 宽度/横截面 | 20 – 25 | 第一连接器安装类型 | 插座 |
产品信息
| 类型 | Ice Cube Style Relay | 系列 | KHA |
| 产品特性 | Neon Indicator | 继电器类型 | General Purpose |
环境参数
| 动作时间 | 13ms | 防护等级 | RTI |
| 工作温度 | -45°C ~ 70°C | 初始介电强度 | 1000 |
