点击放大查看

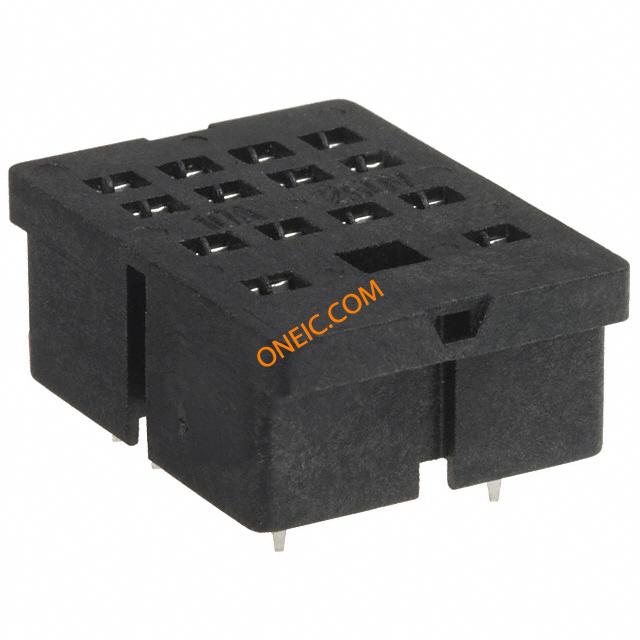

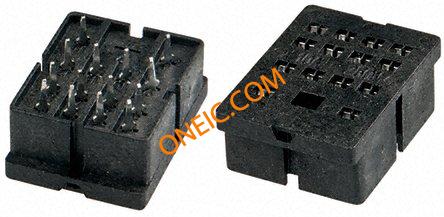

PT78604
| 制造商 | TE Connectivity Ltd. |
| 描述 | Relay Sockets & Hardware SOCKET 4POLE PCB SOCKET 4POLE PCB PT Relay Socket For Use With PT Series Conn Relay Socket SKT 15 POS Solder ST Thru-Hole SOCKET, PCB, PT SERIES Socket,Relay;PCBMount,4Pole,PCBTerminals |
| 分类 |
商业参数
| 零件号别名 | 3-1415043-1 | 产品类别 | Relay Sockets & Hardware |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364900 |
电气参数
| 额定电压 | :250V | 极数 | 2, 3, 4 |
| 介电强度 | :1500VAC | 最大额定电流 | 6 A to 12 A |
机械参数
| 深度 | :29.5mm | 宽度 | :21.5mm |
| 长度 | :11.5mm | 重量 | 0.0697 |
| 包装方式 | Bulk | 安装类型 | Through Hole |
| 端子类型 | :Through Hole | 连接器类型 | :Quick Connect |
| 引脚数 | :15 | 端接样式 | PC Pin |
| 位数 | 14 | ||
产品信息
| 类型 | Socket | 系列 | PT2 |
| 附件类型 | Socket | 适用产品/相关产品 | PT, PTH and KHA Series |
环境参数
| 工作温度 | :70°C | ||
