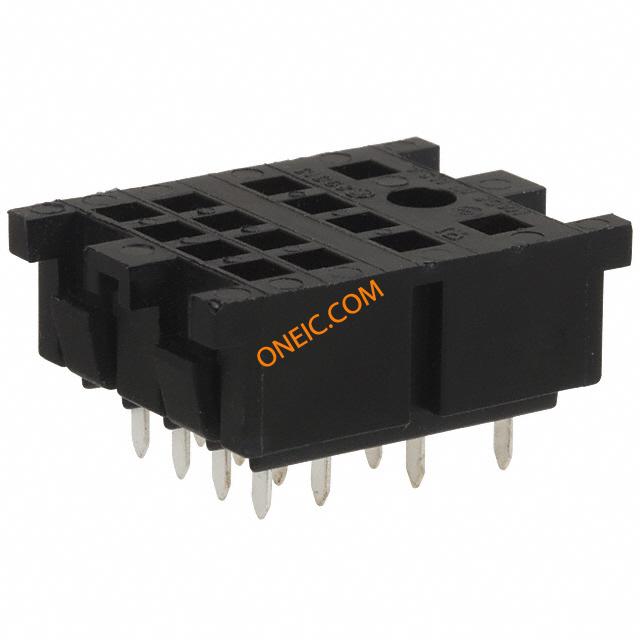

27E023

点击放大查看

27E023

制造商
TE Connectivity Ltd.
描述Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Relay Sockets & Hardware 4PDT PC TERM KH/KHA SOCKET PCB TERMINAL KH SERIES Conn Relay Socket SKT 4 POS Solder ST Thru-Hole Product Highlights:SocketKHA Series, KHS Series, PT SeriesNumber of Poles = 4Terminal Type = PCTerminal Length = 5.54 mm RELAY SOCKET Socket,Relay;PC;4;PotterandBrumfield;RoHSCompliant,ELVCompliant 27E023=SOCKET,KH,14,PC,PHEN,BL
分类
工业电源组件和继电器配件继电器插座及配件
对参数有疑问？问 AI 助手

商业参数

交货时间28 Days子类别Connector Socket
零件号别名1419106-3产品类别Relay Sockets & Hardware
标准包装数量Bulk工厂包装数量100

合规参数

RoHSRoHS Compliant标准RoHSCompliant,ELVCompliant
海关税号85364110零件状态1419106-3

电气参数

额定电压:240VAC极数4
最大额定电流:5A

机械参数

重量0.005端接方式Solder
安装类型Through Hole连接器类型:Through Hole
引脚数:14端接样式Solder Terminal
触点数4位数14
接线端子类型PC

产品信息

类型Relay Socket连接器性别SKT
系列KHAU, KHS产品特性Without Grounding
制造商全称PotterandBrumfieldBrand附件类型Sockets
行业别名1419106-3, 27E023应用细节Various applications include process control, photocopier, and data processing
有铅工艺兼容:Yes适用产品/相关产品PT, PTH and KHA Series

环境参数

测试温度:No

文档与媒体

在线文档
1419106-3?RQPN=27E023
PDF 文档
KHA Series, Rev 10-98
