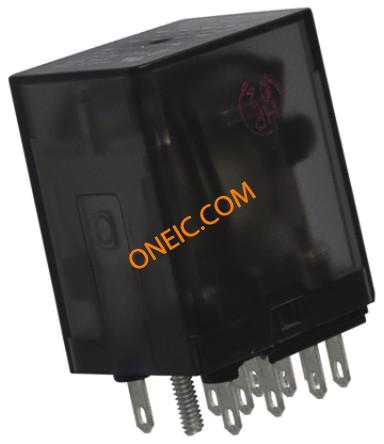

KHAU-17D11-48
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay 4PDT 5A 48VDC 2.6KOhm Socket General Purpose Relays 4PDT 3Amp Mini RELAY GEN PURPOSE 4PDT 3A 48V RELAY, MONOSTABLE MAGNETIC COIL SYSTEM Electromechanical Relay 4PDT 5A 48VDC 2.6KOhm Socket Product Highlights:KHA SeriesContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 3 Amps.Monostable Coil Magnetic SystemWithout Coil Suppression Diode POWER RELAY, 4PDT, 48VDC, 3A, PLUG IN RELAY,MONOSTABLEMAGNETICCOILSYSTEM,3A,4FORMC,4PDT,4C/O KHAU-17D11-48=KH |
| 分类 |
商业参数
| 交货时间 | 94 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 4-1393122-5 | 产品类别 | General Purpose Relays |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85364110 |
| 零件状态 | 4-1393122-5 | ||
电气参数
| 线圈类型 | Monostable | 线圈功率 | 900 mW |
| 量程（°/s） | :TE - KHA Series | 线圈电流 | 18.46 mA |
| 释放时间 | 6ms | 额定电压 | 28 V |
| 线圈电阻 | 2.6 KOhm | 承载电流 | :3A |
| 输出电流 | :5A | 供电电压 | 48 V |
| 开关电压 | 240VAC - Max | 最大额定电流 | 5 A |
| 触点电压（最大） | :240V | 最小输入电压 | 120 V |
| 平均正向功率 | 0.9 W | 集电极-发射极饱和电压（最大）@ Vge, Ic | 36 VDC |
| 触点额定电流 | 3A | 驱动电压（最大Rds On，最小Rds On） | 48VDC |
机械参数
| 宽度 | 21.8 mm | 高度 | 34.9 mm |
| 长度 | 28.2 mm | 重量 | 0.027 |
| 包装方式 | Tray | 触点形式 | 4 Form C (4PDT-BM) |
| 安装类型 | Socket | 安装样式 | Socket |
| 触头材料 | Silver | 端接样式 | Plug In |
| 接触件端接 | Plug | 典型触点布局 | 4PDT |
产品信息
| 类型 | General Purpose Relay | 系列 | KHA |
| 产品特性 | Insulation - Class B | 功能 | MagneticSystem |
| 继电器类型 | General Purpose | 行业别名 | 4-1393122-5, KHAU-17D11-48 |
环境参数
| 动作时间 | 13ms | 工作温度 | -45 to 70 °C |
