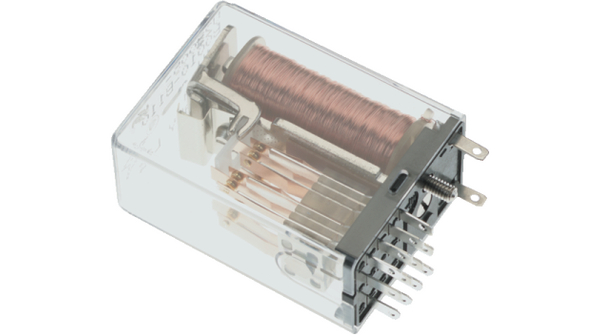

4-1393816-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Electromechanical Relay 4PDT 2A 24VAC 170Ohm Socket Low Signal Relays - PCB V23005B 10B110 Communications/Signal PC Board Relays RELAY GEN PURPOSE 4PDT 2A 24V Electromechanical Relay 4PDT 2A 24VAC 170Ohm Socket Product Highlights:V23005/Cradle Relay W SeriesAC Actuating SystemInput Voltage = 24 VACContact Arrangement = 4 Form C, 4PDT, 4 C/OContact Current Rating = 2 Amps.Search Keywords:switch, signal-level loads, test gear, thermostats, instrumentation, consumer electronics, industrial equipment Signal Relay Coil Voltage: 24 VAC Contact Configuration: 4C 4PDT Current: 2 Amps Mounting: Plug-in Operating Function: Single Side Stable Cradle relay 4 change-over (CO) 24 VAC, 4-1393816-0, TE Connectivity V23005B 10B110 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | V23005B10B110 | 产品类别 | Low Signal Relays - PCB |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C | 认可国家 | None |
| RoHS/ELV合规声明 | Converted to comply with RoHS directive | FCC Part 68隔离 | No |
电气参数
| 电流 | 2 Amps | 线圈类型 | Non Latching |
| 核心类型 | Non Polarized, Monostable | 隔离 | -20.7dB @ 900MHz, -39dB @ 100MHz |
| 线圈功率 | 1.15 VA | 电感量 | 170 |
| 线圈电流 | 141mA | 输入功率 | 1150 |
| 额定输出功率 | 1 – 2 VA | 可见输出 | No |
| 测试电压 | 0.5 | 额定电压 | 150 V |
| 线圈电阻 | 170 Ohm | 浪涌电流 | 2 |
| 供电电压 | 24 V | 开关电压 | 125VAC, 150VDC - Max |
| 交流输入电压 | 24V | 额定交流电压 | 125V |
| 连接器阻抗 | 1 Form C (CO) | 开关电流 | 2 A |
| 跳闸电流 | 2 | 二极管配置 | No |
| 击穿电压 | 500 | 最大额定电流 | 2 A |
| 输出1频率 | 单稳态，交流 | 插入损耗（最大） | -.02dB @ 100MHz, -.27dB @ 900MHz |
| 绝缘电阻 | 500 | 最小输入电压 | 125 V |
| 平均正向功率 | 0.7 VA to 1.15 VA | 集电极-发射极饱和电压（最大）@ Vge, Ic | 19.2 VAC |
| 触点额定电流 | 2 A | 触点额定值 @ 电压 | 2A |
| 连续输出功率 | 50 | 初始电阻（最小） | 1000000 |
| 直流反向电压（Vr）（最大） | 150V | 放电电流（最大）（8/20µs） | 2 |
| 高侧电压（自举）最大 | 19.2VAC | 阳极-阴极电压（Vak）（最大） | 125 |
| 保护电压（VP）（2416） | IP 30 | ||
机械参数
| 密封 | Unsealed | 尺寸 | Size II |
| 深度 | 19 mm | 间距 | 2.5 |
| 宽度 | 19 mm [ .748 in ] | 高度 | 40 mm |
| 长度 | 30 mm [ 1.181 in ] | 重量 | 40 g [ 1.41 oz ] |
| 包装方式 | Bulk | 端接方式 | Solder/Plug-In Terminals |
| 触点形式 | 4 Form C (4PDT-BM) | 触头类型 | Single |
| 致动器类型 | AC | 触点形状 | 4PDT (4 Form C) |
| 安装类型 | Socket | 安装样式 | Socket |
| 封装形式 | Dust Cover | 总深度 | 30 – 40 mm |
| 总宽度 | 16 – 20 mm | 触头材料 | Silver/Gold Flash |
| 总长度 | 30 mm | 外形尺寸 长x宽x高 | 30.00 x 19.00 x 40.00 [1.181 x .748 x 1.575] |
| 插针孔直径 | Industry Standard | 端接样式 | Solder Terminal |
| 触点数 | 4 change-over (CO) | 位数 | 14 |
| 典型触点布局 | 4PDT | 供应商器件封装 | With |
产品信息
| 备注 | n/a | 类型 | Signal Relay |
| 选项 | n/a | 系列 | V23005/Cradle Relay W |
| 功能 | Single Side Stable | 极性 | No |
| 继电器类型 | General Purpose | 性能 | 标准 |
| 制造商全称 | V23005B10B110 | 产品子类型 | 继电器 |
| 按下测试类型 | No | 卡标准 | Signal Relay |
环境参数
| 防护等级 | RTI | 工作温度 | -40 to 70 °C |
| 初始介电强度 | 500 | ||
