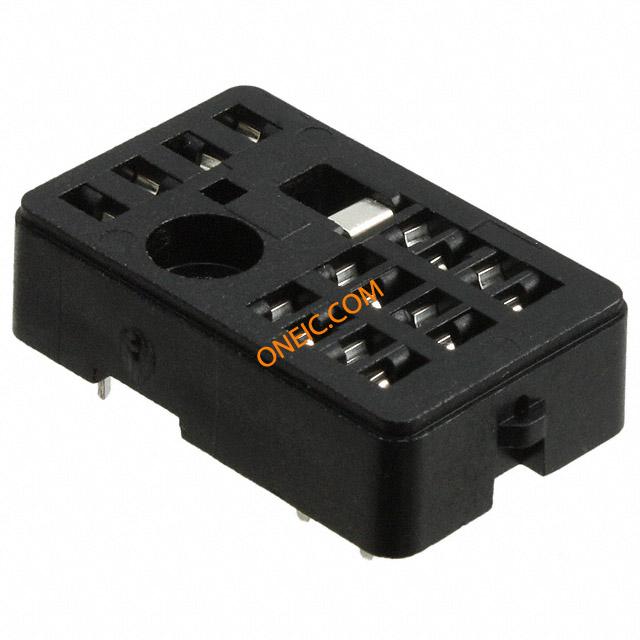

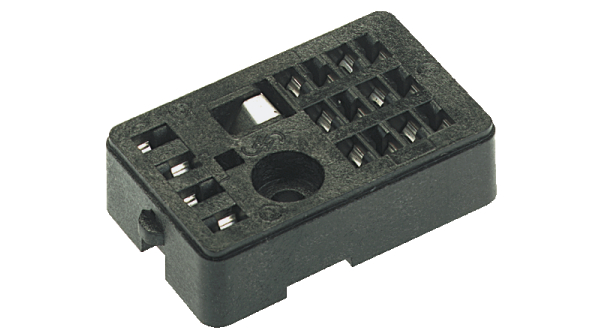

9-1393809-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | RELAY SOCKET PCB SIZE II Relay Sockets and Accessories Conn Relay Socket SKT Solder ST Thru-Hole Conn Relay Socket SKT Solder ST Thru-Hole Product Highlights:SocketCradle Relays - Size II SeriesTerminal Type = PCWith Grounding ProvisionSearch Keywords:relay connectors 4POLECRADLESOCKET Relay socket, size 2, 9-1393809-1, TE Connectivity V23154Z1002 |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 防护类型 | With |
| 抗辐射加固 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 最大额定电流 | 5/Contact A | ||
机械参数
| 尺寸 | Size II | 安装类型 | Through Hole |
| 端子类型 | PC | 连接器类型 | 印刷电路板 |
| 接触镀层 | Silver | 安装样式 | Through Hole |
| 插入件材料 | 铜锡合金 | 触头材料 | Copper Tin |
| 壳体材料 | Polycarbonate | 主要材料 | 聚碳酸酯 |
| 端接样式 | PC Pin | 绝缘材料 - 类型 | Polycarbonate |
| 位数 | 16 | 典型触点布局 | PC |
产品信息
| 类型 | Socket | 连接器性别 | SKT |
| 系列 | Cradle Relays - Size II | 制造商全称 | Axicom |
| 产品子类型 | Socket | 适用产品/相关产品 | Cradle Relays, AXICOM |
