点击放大查看

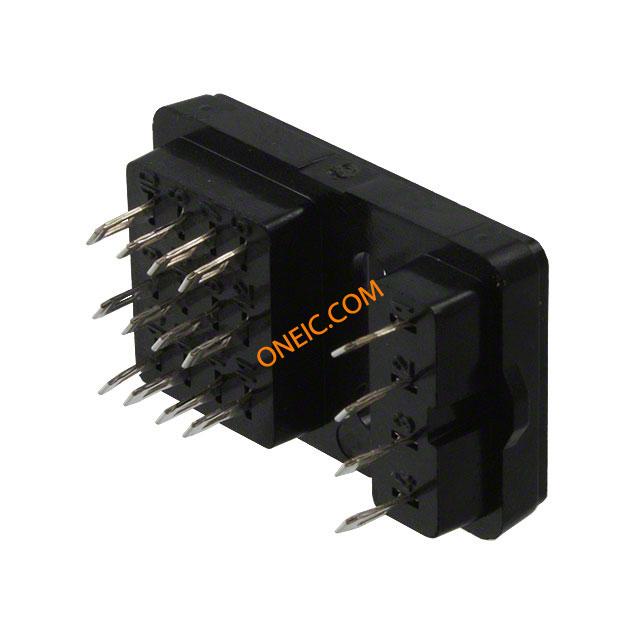

1393824-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | RELAY SOCKET SOLDER SIZE II Relay Sockets and Accessories Conn Relay Socket SKT Solder Lug ST Panel Mount Conn Relay Socket SKT Solder Lug ST Panel Mount Search Keywords:relay connectors Cradle Relays Size-II Electromechanical Relay Socket V23154Z1006 |
| 分类 |
商业参数
| 标准包装数量 | 20 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 防护类型 | With |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 安装类型 | Panel Mount | 端子类型 | Solder |
| 连接器类型 | 印刷电路板 | 接触镀层 | Silver |
| 插入件材料 | 铜锡合金 | 触头材料 | Copper Tin |
| 主要材料 | 酚醛 | 端接样式 | Solder Lug |
| 位数 | 16 | 典型触点布局 | 焊接 |
产品信息
| 类型 | Socket | 系列 | Cradle Relays - Size II |
| 制造商全称 | Axicom | 产品子类型 | Socket |
| 适用产品/相关产品 | Cradle Relays, AXICOM | ||
