点击放大查看

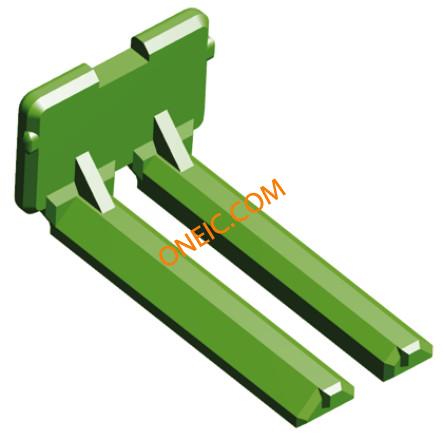

967632-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 12 POS Secondary Lock Polybutylene Terephthalate/Acrylonitrile Styrene Acrylate Green Timer Connectors CONN TAB HSNG SEC LOCK JPT 12POS JPT Timer 2.8 12 way secondary lock Automotive Connectors 2 KONT-SICHERUNG 12P Connector Accessories Timer Connector Secondary Lock Polybutylene Terephthalate Green Connector Accessories 12 POS Secondary Lock Polybutylene Terephthalate/Acrylonitrile Styrene Acrylate Green Product Highlights:Receptacle HousingConnector Type = Junior Power TimerNumber of Positions = 12Housing Color = GreenNot SealedSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT JPTTimer2.812waysecondarylock Secondary lock; JPT; green; Application: x-967622-x, x-967627-x TE Connectivity 辅助锁, 使用于未密封 2.8mm 插片外壳 2. KONT-SICHERUNG 12P |
| 分类 |
商业参数
| 产品 | Secondary Locks | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 5000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94-HB |
电气参数
| 连接器类型 - 电压输入 | x-967622-x, x-967627-x | ||
机械参数
| 颜色 | Green | 密封型 | No |
| 重量 | 1 g | 材料（通用） | PBT GF |
| 包装方式 | 纸箱 | 触头类型 | Receptacle |
| 外壳颜色 | Green | 连接器类型 | Junior Power Timer |
| 连接器用途 | secondary lock | 壳体材料 | PBT/ASA - GF 30 |
| 总长度 | 5.00 [0.197] | 包装数量 | 250 |
| 主要材料 | AutomotiveConnectorAccessory | 连接器颜色 | green |
| 位数 | 12 | ||
产品信息
| SPG | 250 | 备注 | With Secondary Locking |
| 类型 | Secondary Lock | 连接器性别 | Female |
| 系列 | JPT | 可维修 | Yes |
| 产品子类型 | Receptacle Housing | 附件类型 | Retainer Clip |
| 适配器系列 | Junior Power Timer | 单元数量 | 250 |
| 射频系列/标准 | 967632 | 适用产品/相关产品 | Unsealed 2.8 mm Tab Housing |
环境参数
| 工作温度 | -40 – 140 °C [ -40 – 284 °F ] | ||
