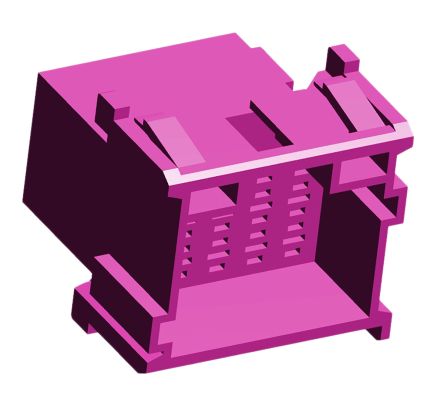

1-967628-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS 5mm Crimp ST Timer Connectors FLA-ST-GEH 2.8 15P Automotive Connectors FLA-ST-GEH 2.8 15P Conn Housing RCP 15 POS 5mm Crimp ST Product Highlights:Tab HousingConnector Type = Junior Power TimerTab Fit = 2.79 x 0.81 mmNumber of Positions = 15Housing Color = PurpleSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, 2.8MM, 15WAY Connector: rectangular; JPT; plug; male; PIN:15; for cable; 5mm 15 Position 5 mm Pitch 2.8 JPT Tab Plug Housing Timer Connector TE Connectivity Timer 系列 3行 15路 直插式安装 紫色 公 外壳 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 800 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 颜色 | Purple | 间距 | 5 mm |
| 重量 | 0.004 | 包装方式 | Bulk |
| 插片宽度 | 2.79 x 0.81 [.110 x .032] | 排间距 | 0.217" (5.51mm) |
| 触头类型 | Male Pin | 柱间距 | 5mm |
| 外壳颜色 | Purple | 安装类型 | Straight |
| 连接器类型 | Junior Power Timer | 安装样式 | Wire |
| 排数 | 3 | 壳体材料 | PA 6.6 GF 13% |
| 总长度 | 5.00 [0.197] | 包装数量 | 1 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 连接器颜色 | purple | 触点数 | 15 |
| 接触件端接 | Crimp | 位数 | 15 |
产品信息
| SPG | 1 | 备注 | With Secondary Locking |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | Timer | 极性 | A |
| 产品子类型 | Tab Housing | 适配器系列 | Junior Power Timer |
| 单元数量 | 60 | 适用产品/相关产品 | :TE Connectivity AMP MCP Connectors |
文档与媒体
相关型号

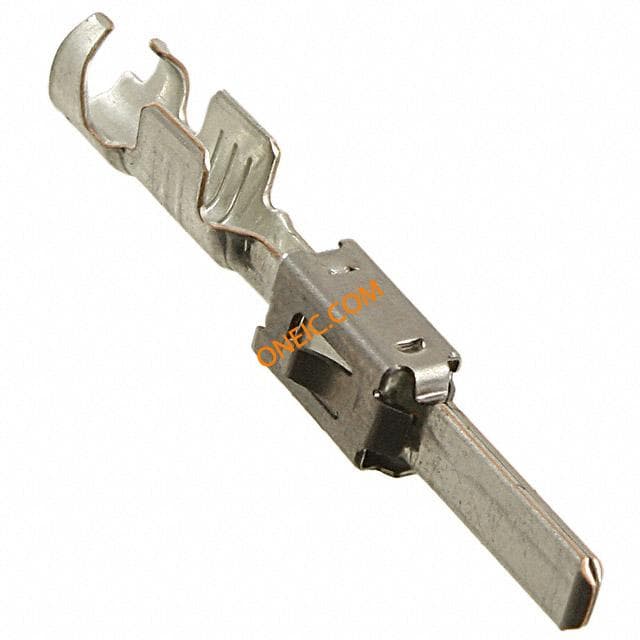

1-963746-1
