1-967627-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS 5mm Crimp ST Panel Mount Loose Piece Timer Connectors FLA-STE-GEH2,8 12P MCP 2.8 12 way tab housing, key A, green Power to the Board FLA-STE-GEH2 8 12P Conn Housing PL 12 POS 5mm Crimp ST Panel Mount Loose Piece Product Highlights:Tab HousingConnector Type = Junior Power TimerNumber of Positions = 12Tab Fit = 2.79 x 0.81 mmPA 6.6 GF 13% Housing MaterialSearch Keywords:Power Blade & Receptacle Connectors, cabled power,TSMT, Tandem Spring MT HOUSING, 2.8MM, 12WAY MCP2.812waytabhousing,keyA,green Connector: wire-wire; JPT; plug; male; w/o terminals; PIN:12 TE Connectivity Timer 系列 3行 12路 绿色 公 连接器 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 950 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 量程（°/s） | :- | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Green | 深度 | 23.5mm |
| 间距 | 5 mm | 宽度 | 26mm |
| 高度 | 28mm | 重量 | 0.004 |
| 包装方式 | Bulk | 插片宽度 | 2.79 x 0.81 [.110 x .032] |
| 导线线规 | 13 AWG | 排间距 | 0.217" (5.51mm) |
| 触头类型 | Tab | 引脚间距 | :5mm |
| 外壳颜色 | Green | 安装类型 | Straight |
| 连接器类型 | Junior Power Timer | 接触镀层 | Tin |
| 安装样式 | for cable | 排数 | 3 |
| 触头材料 | Copper Alloy | 壳体材料 | PA 6.6 GF 13% |
| 总长度 | 5.00 [0.197] | 包装数量 | 1 |
| 主要材料 | Connector | 连接器 - 电缆 | plug |
| 第一触头极性 | Pin (Male) | 连接器颜色 | Green |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | ||
产品信息
| SPG | 1 | 备注 | With Secondary Locking |
| 类型 | Housing | 连接器性别 | PL |
| 极性 | A | 制造商全称 | MCP2.8Series |
| 产品子类型 | Tab Housing | 适配器系列 | Junior Power Timer |
| 单元数量 | 1 | ||
文档与媒体
相关型号

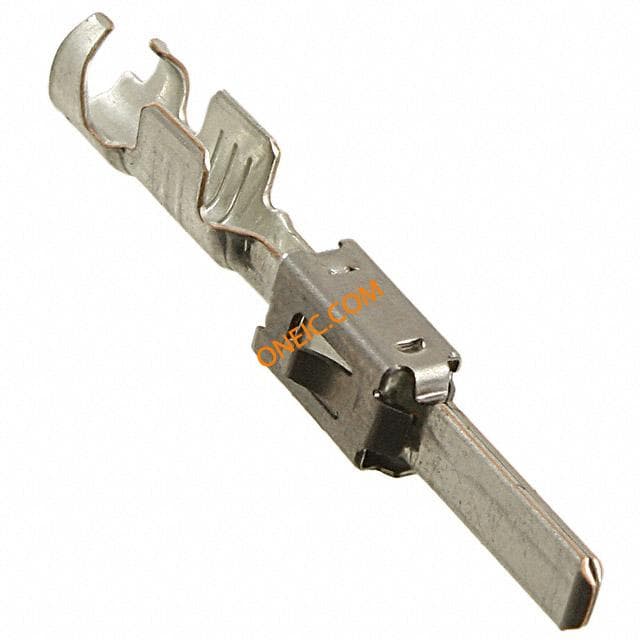

1-963746-1
