87572-5

点击放大查看

87572-5

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER 16POS DL R/A TIN Headers & Wire Housings 16 MODII HDR DRRA 3/ 208 Conn Shrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRRA 3/4SHRD .100
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量104

合规参数

RoHSContains lead / RoHS non-compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

最大额定电流3 A绝缘电阻5000 MOhms
保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型不带锁定类型不带
包装方式Bulk壳体颜色黑色
引脚样式正方形稳定器不带
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin第一连接器否
安装类型Through Hole, Right Angle连接器类型Header, Shrouded
接触镀层Bright Tin Over Nickel紧固类型Detent Lock
安装样式标准排数2
外壳材料（壳体）3- 面插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
包装数量104面板安装类型通孔
端接样式Through Hole第一连接器类型带罩
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数16端接表面处理带有
位数16柱体长度（配合）8.08 mm
安装孔直径带有接触长度 - 配合0.318" (8.08mm)
端子柱长度3.18 mm接触镀层厚度100µin (2.54µm)
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否接触件镀层 - 插柱（配合端）亮光

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
产品子类型Headers加载位置数All

环境参数

密封等级不带防护等级带罩
工作温度- 55 C to + 105 C封装热阻1.397 mm [ .055 in ]
结工作温度否

文档与媒体

在线文档
87572-5

相关型号

1-87456-1

1-87456-1

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 DUAL ROW RECEPTACLE, AMPMODU, MOD IV, 16 POSITION Headers & Wire Housings 16 MODIV HSG COMP DR Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 16POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,16POSITION,.100IN,DUALROW 16 MODIV HSG COMP DR .100CL

¥3.8880
详情
102694-6

102694-6

te connectivity / amp

Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD

详情

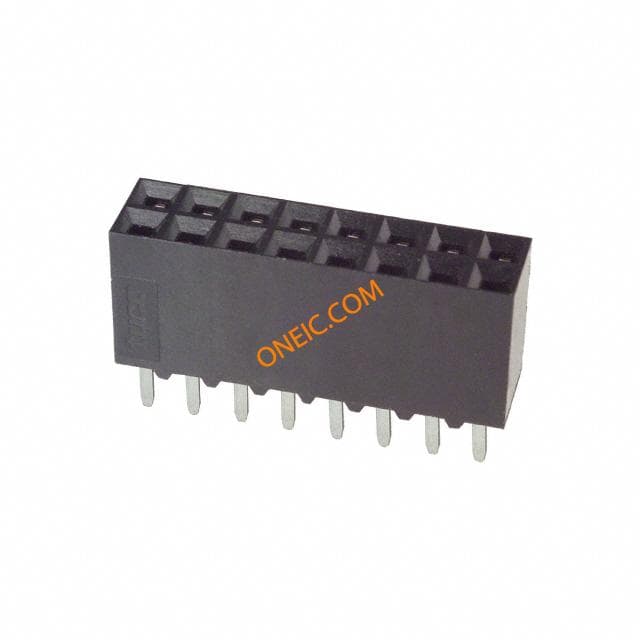

534206-8

534206-8

te connectivity / amp

Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL Headers & Wire Housings REC 2X08P VRT T/H Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 16Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,16MODIIVRTDRCE100/115 16 Position Dual Row 2.54 mm Vertical Through Hole Receptacle Mod II Connector 16 MODII VRT DR CE 100/115

¥8.8560
详情

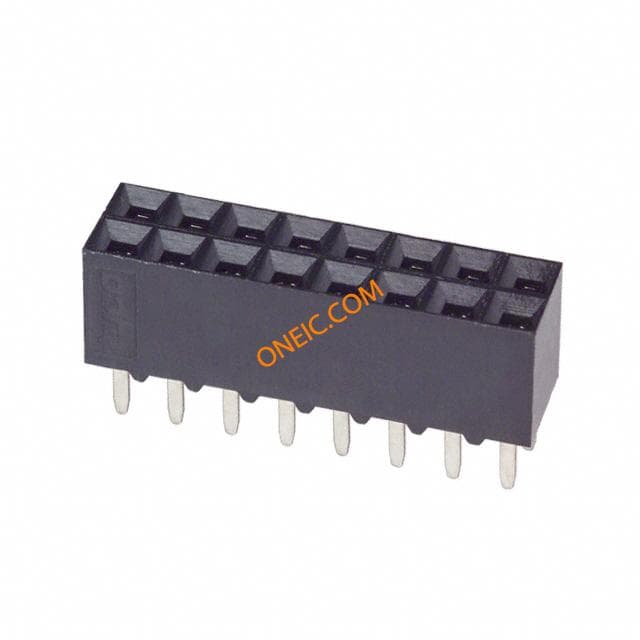

534998-8

534998-8

te connectivity / amp

Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL Headers & Wire Housings 16P MODIV RECEPTACLE 1680 Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 16 MODIV VRT DR CE 100/125

¥9.0000
详情
5-102448-6

5-102448-6

te connectivity / amp

Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD

详情
102394-6

102394-6

te connectivity / amp

Conn Housing RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT AMP MODU 16 DR .100CL Headers & Wire Housings 16P RCPT DR .100CL Conn Housing RCP 16 POS 2.54mm IDT ST Cable Mount Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 AMP MODU MT HSG DR .100CL

¥5.8320
详情
102448-6

102448-6

te connectivity / amp

Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 22-20 16 AMPMODU MT ASSY DR .100CL 16 AMPMODU MT ASSY DR .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥25.9920
详情
102393-6

102393-6

te connectivity / amp

Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 30-26 Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 16Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 AMPMODU MT ASSY DR .100CL

¥22.2588
详情
5-534998-8

5-534998-8

te connectivity / amp

Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL TE Connectivity Mod IV Series 2.54mm 16 Way 2 Row Straight PCB Socket Through Hole Board to Board Headers & Wire Housings REC 2X08P VRT T/H Conn Socket Strip RCP 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 16Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 16WAY, 2ROW VERTIVDRCERECASY,16MODIVVRTDRCE100/125 TE Connectivity AMPMODU Mod IV 系列 2行 16路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 16 MODIV VRT DR CE 100/125

¥8.5680
详情
104439-7

104439-7

te connectivity / amp

Conn IDC Connector RCP 8 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RCPT 8POS .100 22-26 30AU Headers & Wire Housings 2X8 MTE RCPT SR PLAIN .100CL 2X8 MTE RCPT SR PLAIN .100CL 2X8 MTE RCPT SR PLAIN .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE

¥13.8101
详情
102398-6

102398-6

te connectivity / amp

Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 26-22 Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 16Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 AMPMODU MT ASSY DR .100CL

¥22.9680
详情
535598-8

535598-8

te connectivity / amp

Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 16POS .100 DUAL T/H AU Headers & Wire Housings 16 MODIV VRT DR CE RCPT ASSY Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 16 MODIV VRT DR CE RCPT ASSY

¥5.0990
详情
5-102393-6

5-102393-6

te connectivity / amp

Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 16POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 16P 30-26 Conn IDC Connector RCP 16 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 16Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 16 AMPMODU MT ASSY DR.100CL SN

¥12.8160
详情

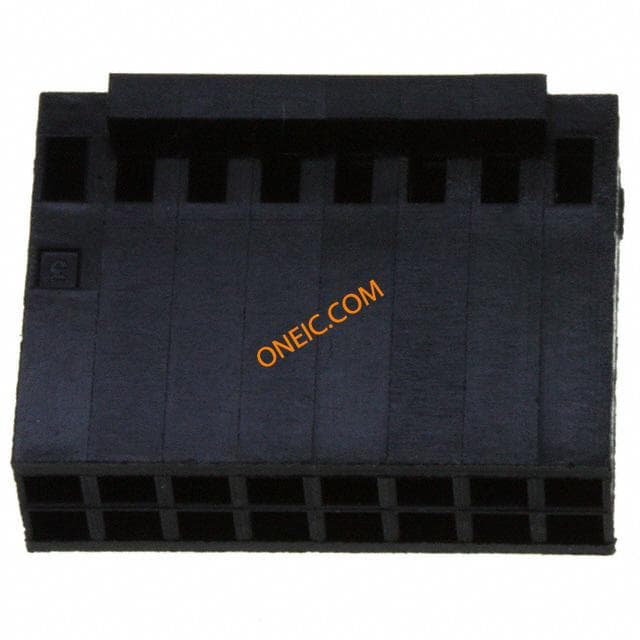

3-87977-3
