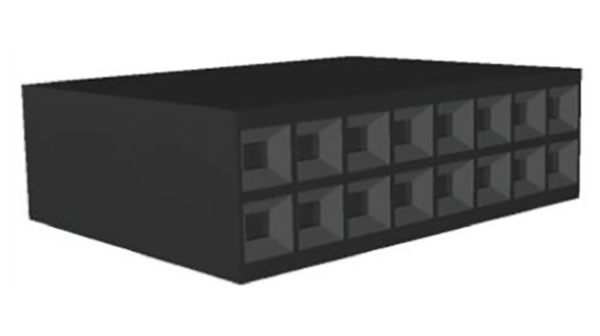

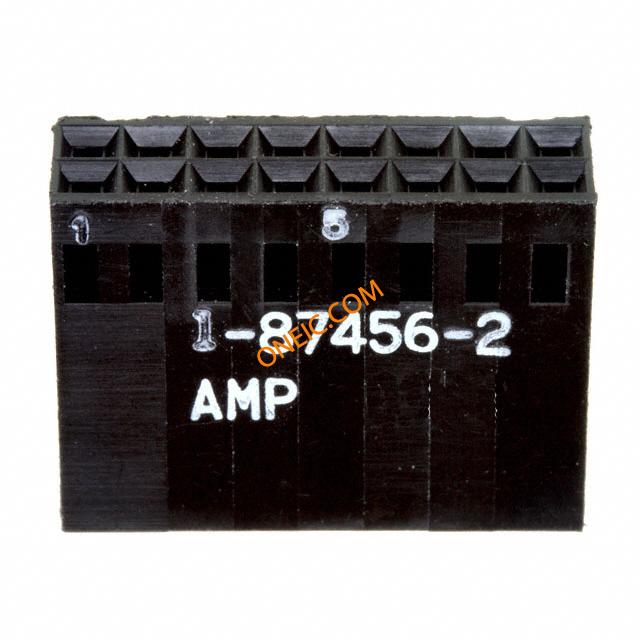

1-87456-2

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 16POS .100 DUAL Housing FH 16way 2row Rec 2.54mm AmpModu Headers & Wire Housings NON-PLRZD HSG 16 DBL .805 width Conn Housing RCP 16 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 16Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE RECEPTACLE,AMPMODU,MODIV,16POSITION,.100IN,DUALROW,MARKED AMPMODU 16 Position Dual Row 2.54 mm Pitch Crimp Unloaded Socket Housing Crimp housing Pitch2.54 mm Poles 16 Contact DesignStamped Double row / straight / without polarization AMPMODU MOD IV, 1-87456-2, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 16 路直母 PCB 壳体 16 MODIV HSG DR MRKD .100CL
分类	连接器解决方案矩形连接器高可靠性矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	200

合规参数

RoHS	Lead free / RoHS Compliant	标准	ULE28476,CSALR7189,RoHSCompliant,ELVCompliant
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94 V-0

电气参数

额定电压	250 VAC	极数	16
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
击穿电压	750V	最大额定电流	3/Contact A
绝缘电阻	5000 MOhms	最小供电电压	250VAC
连接器类型 - 电压输入	Receptacle	保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24mm
间距	2.54 mm	宽度	6.1mm
高度	6.1 mm	长度	22.86mm
锁定类型	不带	包装方式	Bulk
壳体颜色	黑色	方向	直
排间距	0.100" (2.54mm)	端接方式	CrimpSnap-In
触点形式	Female Socket	触头类型	Female Socket
引脚间距	0.100" (2.54mm)	极化	No
外壳颜色	Black	安装类型	Straight
行程角度	Straight	连接器类型	Receptacle
排数	2	连接器样式	Double row
插入件材料	铍铜	壳体材料	Nylon
总长度	22.86 mm	包装数量	200
主要材料	InterconnectSystem	连接器 - 电缆	Yes
插针孔直径	0.1"	端接样式	插座
连接器颜色	black	触点数	16
接触件端接	Crimp	位数	16
第一连接器极性	Female	安装孔直径	不带
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Wire Housings
连接方式	Wire-Board	其他规格	是
输出配置	Free Hanging (In-Line)	应用细节	Board-to-Board
矩阵（列×行）	0.100x0.100in.	适用产品/相关产品	Centerline Double-Row Connector

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

1650916.pdf

相关型号

103169-6

te connectivity / amp

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS 30AU Headers & Wire Housings ACTION PIN VERT 16P dual .150 end Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST SHRD .100CL

¥13.1036

详情

146261-8

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER BRKWAY 16POS DL .100 Headers & Wire Housings 16 MODII HDR DRST B/ 600 .100 inch AMPMODU Headers Product Highlights:ConnectorConnector Type = Header - PinHeader Type = Breakaway16 PositionsMating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRST B/A .100CL

¥3.1280

详情

86479-2

te connectivity / amp

Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RT/A .100 16POS 30AU Headers & Wire Housings UNSHRD R.A. DUAL 16P Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, 16 MODII HDR DRRA UNSHRD .100

¥31.2120

详情

5-103168-6

te connectivity / amp

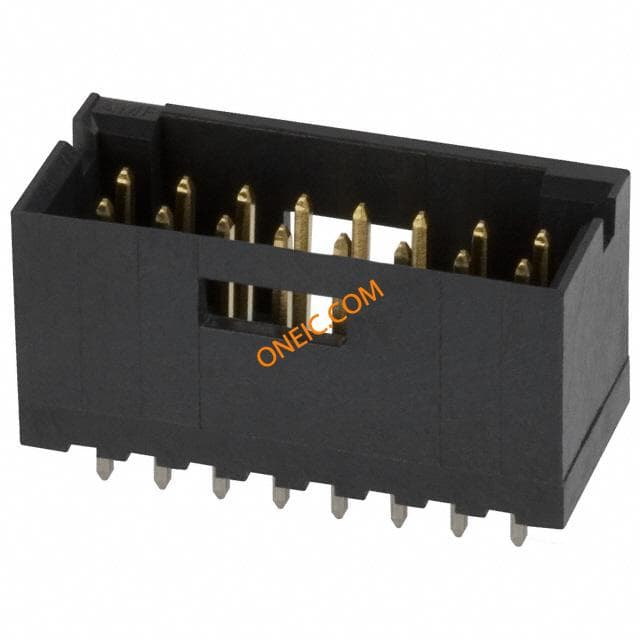

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 16POS 30AU Headers & Wire Housings SHROUDED VER DUAL 16 detent windows Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 16Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, HEADER, VERTICAL, 2ROW, 16WAY Header,ThroughHole;Shrouded;Vertical;PhosphorBronze;Thermoplastic;16 16 MODII HDR DRST SHRD .100CL
