点击放大查看

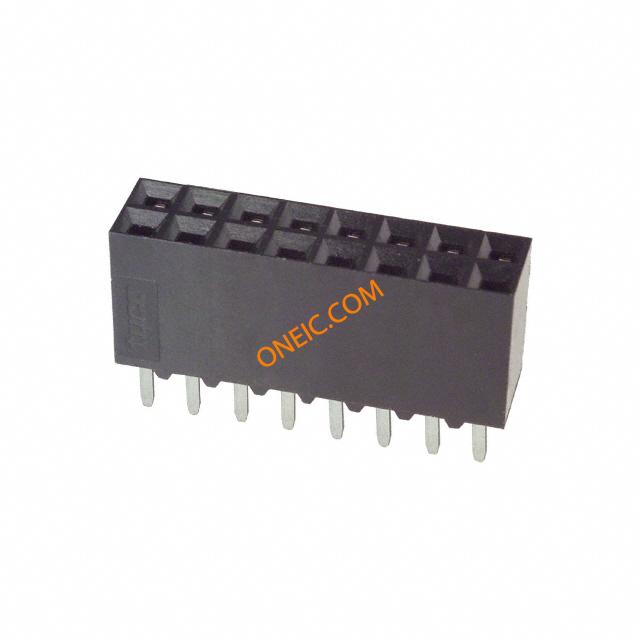

534206-8

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 VERT DUAL Headers & Wire Housings REC 2X08P VRT T/H Conn Socket Strip SKT 16 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 16Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,16MODIIVRTDRCE100/115 16 Position Dual Row 2.54 mm Vertical Through Hole Receptacle Mod II Connector 16 MODII VRT DR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	28

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

接触电阻	12 mohm	输入电阻	5000
额定交流电压	333	最大额定电流	2 A

机械参数

颜色	Black	深度	5.03 mm
间距	2.54 mm	高度	8.64 mm
包装方式	Tube	壳体颜色	黑色
引脚样式	正方形	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
引脚间距	0.100" (2.54mm)	外壳颜色	Black
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Through Hole
排数	2	压力（PSI）	标准
端子样式	短点	连接器用途	闭合入口, 顶部
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	20.32 mm
包装数量	25	面板安装类型	通孔 - 焊接
主要材料	InterconnectSystem	端接样式	Through Hole
触点数	16	接触件尾部长度	2.92
位数	16	衬套/护套类型	不带
兼容外壳尺寸（如TM-700等）	与接头配合	端子柱长度	2.92 mm [ .115 in ]
接触镀层厚度	30µin (0.76µm)	每排/每行位置数	All

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	是
制造商全称	AMPMODU/ModIISeries	产品子类型	Receptacles / Sockets - PCB
装配配置	板支座	加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]
