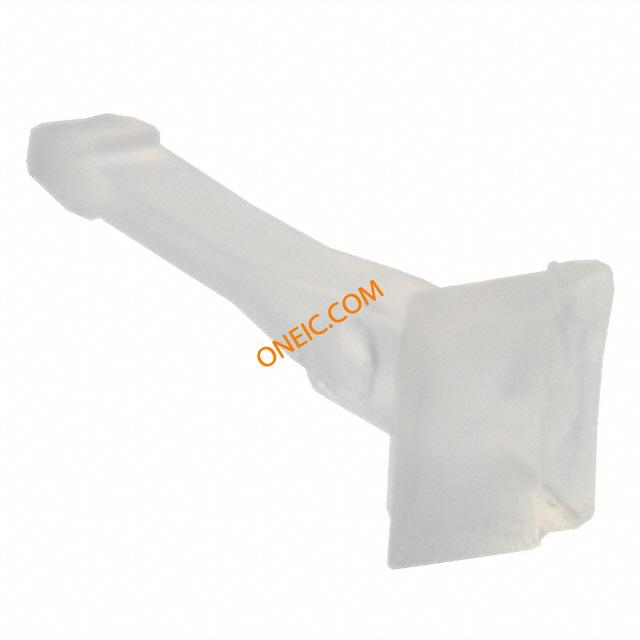

86286-1
| 制造商 | |
| 描述 | Connector Accessories Keying Plug Nylon Natural .100 inch AMPMODU Receptacles CONN KEYING PLUG NATURAL Keying Plug, Mod IV,nylon Headers & Wire Housings KEYING PLUG plugs into recpt cnt Connector Accessories Keying Plug Nylon Natural Product Highlights:Keying PlugMod II, Mod IVSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, AMP;KEYINGPLUG;PLUGSINTORECEPTACLECONTACT TE Connectivity 键控插头 KEYING PLUG |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 2000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
机械参数
| 深度 | 2.28 mm | 宽度 | 2.28mm |
| 高度 | 1.9mm | 长度 | 6.73mm |
| 材料（通用） | Nylon | 包装方式 | 纸箱 |
| 插头颜色 | Natural | 安装类型 | Right |
| 连接器类型 | Keying Plug | 壳体材料 | Nylon |
| 总长度 | 6.73 mm | 主要材料 | Interconnect |
| 触点数 | 50 | ||
产品信息
| 类型 | Keying Plug | 系列 | Mod II, Mod IV |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMPMODU/MT |
| 产品子类型 | Keying Plug | 附件类型 | Keying Plug |
| 射频系列/标准 | 86286 | 适用产品/相关产品 | Receptacle Assemblies |
文档与媒体
相关型号

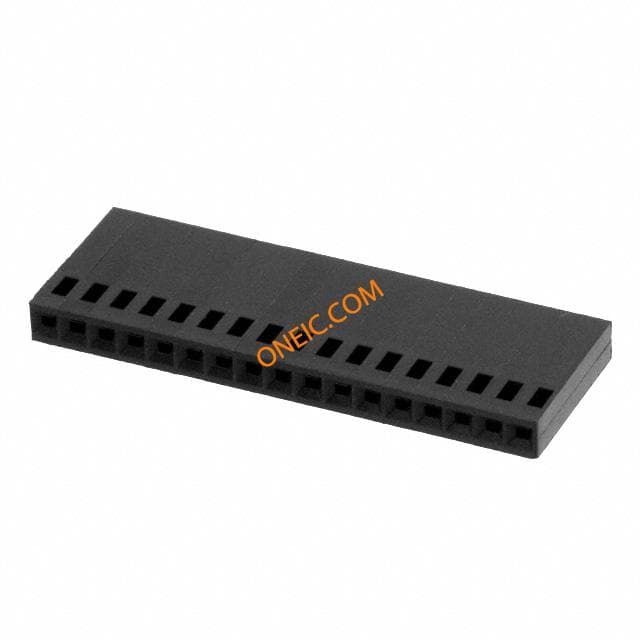

3-87499-2
