首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）5-102398-8

点击放大查看

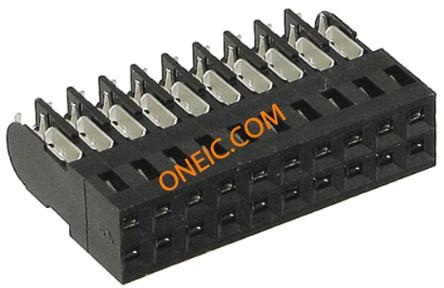

5-102398-8

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 20POS .100 IDC GOLD AMPMODUMTReceptacleAssembly,20Position Headers & Wire Housings HSG DUAL 20P 26-22 Conn IDC Connector RCP 20 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 20Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 20POS, 2.54MM AMPMODUMTReceptacleAssembly,20Position,IDC,DualRow,.100CL 20 AMPMODU MT ASSY DR .100CL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	其他名称	A33395
产品类别	Headers & Wire Housings	标准包装数量	Trays
工厂包装数量	120

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
材料阻燃等级	UL94V-0

电气参数

量程（°/s）

:TE - AMPMODU MT Series

最大额定电流

3 A

机械参数

颜色	Black	间距	2.54 mm
长度	1in	重量	0.003
包装方式	Tray	导线类型	Discrete or Ribbon Cable
导线线规	22-26 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	行程角度	Straight
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Wire	排数	2
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	1"	主要材料	InterconnectSystem
电缆端接方式	IDC	插针孔直径	0.1"
端接样式	IDC	第一触头极性	Socket (Female)
触点数	20	接触件端接	:IDC / IDT
绝缘直径	0.05"	位数	20
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	RCP
系列	MT	产品特性	Closed End
制造商全称	MTSeries	产品子类型	Receptacles / Sockets - Housings
矩阵（列×行）	0.1x0.1

环境参数

工作温度

+105°C

文档与媒体

PDF 文档

580372.pdf
