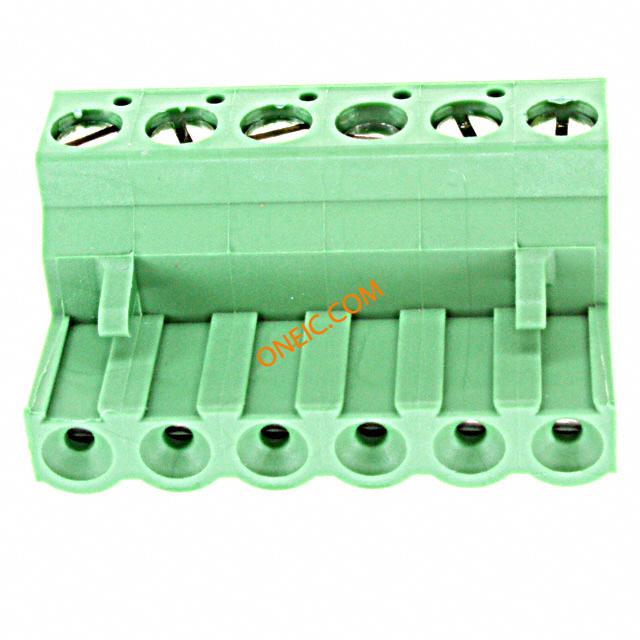

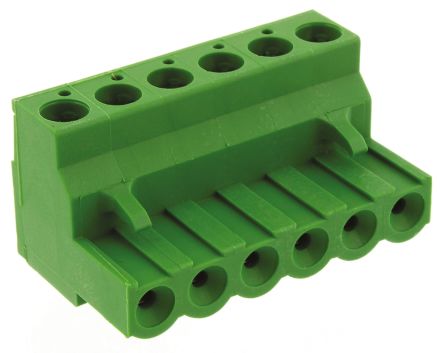

796634-6

点击放大查看

796634-6

制造商
TE Connectivity Ltd.
描述Conn Terminal Block F 6 POS 5.08mm Screw RA Cable Mount 15A/Contact TERM BLOCK PLUG 6POS STR 5.08MM Non-Fused Terminal Block Cable Mount 6 Way, Screw Down, 300V ac Pluggable Terminal Blocks 5.08MM RA PLUG 6P Conn Terminal Block F 6 POS 5.08mm Screw RA Cable Mount 15A/Contact Product Highlights:ConnectorConnector Type = PlugHousing Color = GreenNot StackedWithout Threaded FlangeSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end TERMINAL BLOCK PLUGGABLE, 6POS, 30-12AWG Conn;TermBlk;Plug;Screw;6;5.08mm;RightAngle;30-12AWG;Green;15A;300V;M3 Pluggable terminal block; plug; female; 5.08mm; ways:6; 15A; green TE Connectivity 6 路 无熔丝端子块, 电缆安装, 螺钉拧紧端接, 300 V 交流 6 POS 5.08MM R/A PLUG,TRM BLK
分类
连接器解决方案接线端子接线端子与连接器（通用型）
对参数有疑问？问 AI 助手

商业参数

产品Pluggable Terminal Blocks产品类别Pluggable Terminal Blocks
标准包装数量Bulk工厂包装数量100

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
认证机构ULRecognized材料阻燃等级UL 94 V-0

电气参数

电流15A电压300V
额定电压300 V ac极数6Poles
最大额定电流15A

机械参数

颜色Green深度18.4mm
间距5.08 mm高度15.5mm
长度30.48mm重量0.00001
材料（通用）Nylon包装方式Bulk
遮蔽类型No引脚样式Side
导线线规12-30 AWG端接方式Screw
柱间距5.08mm基体材料polyamide
外壳颜色Green安装类型Cable Mount
连接器类型:Eurostyle Terminal Block接触镀层Tin
安装样式for cable排数1
插头进线方向180°触头材料Phosphor Bronze
壳体材料Polyamide (PA)包装数量100
主要材料PCB尺寸/外形see
连接器 - 电缆plug插针孔直径0.2(5.08)In.(mm)
连接器颜色green触点数6
位数6接线端子类型Plug, Female Sockets
进线位置Front线规或范围 - AWG30-12
线规或范围 - mm²12第一连接器安装类型:Cable
每排/每行位置数6

产品信息

SPG100类型Terminal Block
级别SingleLevel连接器性别F
系列:-产品特性Retention Latches (Non-Wire Side)
制造商全称Buchanan单元数量1
层数1每层位数6

环境参数

工作温度-40...105°C

文档与媒体

PDF 文档
1650926.pdf

相关型号

1776167-6

1776167-6

te connectivity / amp

Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks 6P TERMI-BLOK HDR, HIGH TEMP Terminal Block Connectors TERM BLOCK HDR 12POS R/A 5.08MM 6P TERMI-BLOK HDR,HIGH TEMP

¥11.7300
详情

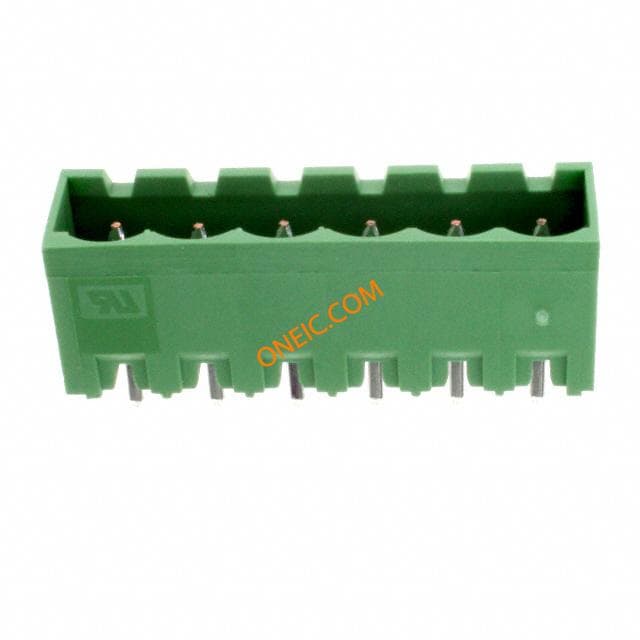

796636-6

796636-6

te connectivity / amp

Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Pluggable Terminal Blocks 0508 HDR 06P VRT GRN C/E Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot StackedSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end Conn;TermBlk;PCB;Header;SnglLvl;ClosedEnd;Sldr;6Pole;5.08mmPitch;Buchanan 6POS 5.08MM CE VRT HDR,TRM BLK

¥3.7400
详情

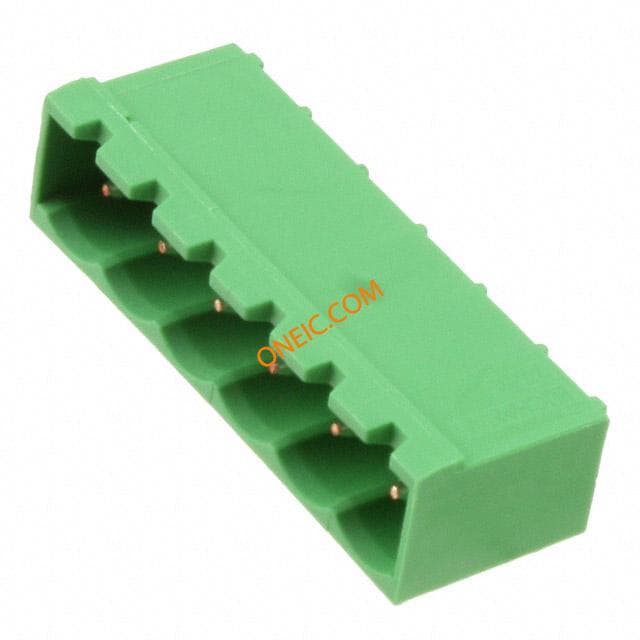

796638-6
