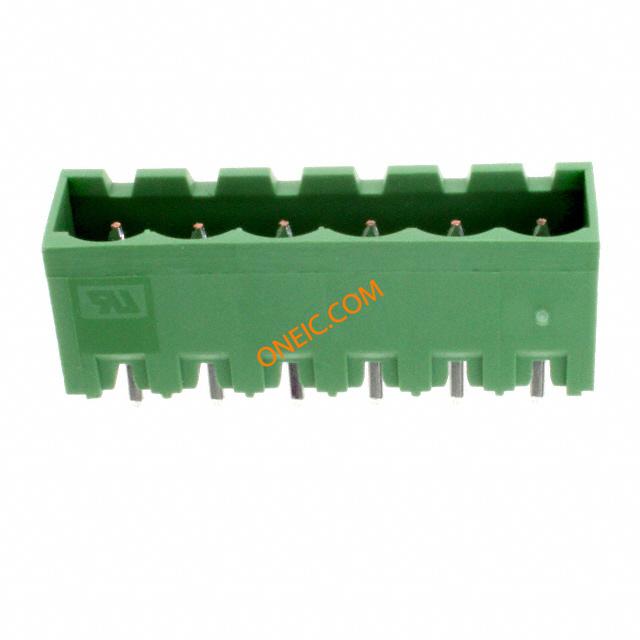

796636-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Pluggable Terminal Blocks 0508 HDR 06P VRT GRN C/E Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot StackedSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end Conn;TermBlk;PCB;Header;SnglLvl;ClosedEnd;Sldr;6Pole;5.08mmPitch;Buchanan 6POS 5.08MM CE VRT HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | UL,ELV,RoHS |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 极数 | 6Poles |
| 额定交流电压 | 300 | 跳闸电流 | 15 |
| 最大额定电流 | 15 A | ||
机械参数
| 颜色 | Green | 间距 | 5.08 mm |
| 端部样式 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 绿色 | 引脚样式 | Right Angle |
| 导线线规 | 30 | 端接方式 | Solder |
| 引脚长度（针脚） | 3.5 mm [ .138 in ] | 第二连接器 | 否 |
| 安装类型 | Through Hole | 连接器类型 | 头 |
| 接触镀层 | Tin | 法兰特征 | 是 |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 包装数量 | 100 | 主要材料 | PCB |
| 插针孔直径 | 5.08mm | 端接样式 | Through Hole |
| 排针方向 | Vertical | 触点数 | 6 |
| 位数 | 6 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 螺纹/螺钉/孔尺寸 | 不带 | 线规或范围 - AWG | 30-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Shrouded Header | 级别 | SingleLevel |
| 连接器性别 | HDR | 产品特性 | ClosedEnd |
| 制造商全称 | Buchanan | 层数 | 1 |
| 互连系统 | 不带 | 每层位数 | 6 |
| 并排堆叠 | 否 | ||
