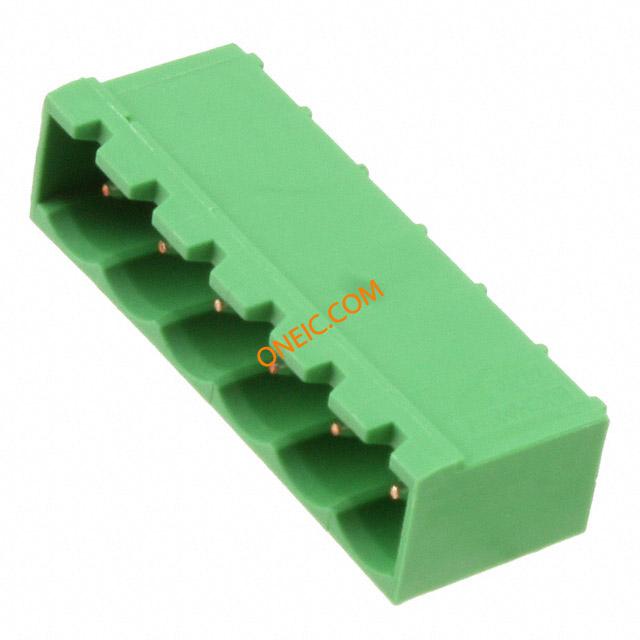

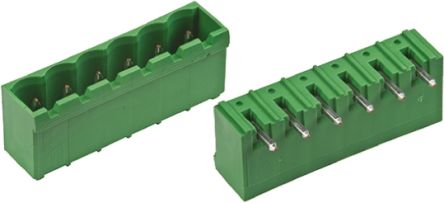

796638-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Termi-Block Header 6 way pcb r/a Pluggable Terminal Blocks 5.08MM RA HDR 6P Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = GreenNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end HEADER, 5.08MM, 6WAY TERMI-BLOCKHEADER6WAY Pluggable terminal block; socket; male; angled 90°; 5.08mm; 15A TE Connectivity Buchanan 系列 5.08mm节距 6路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 15A , 通孔 6POS 5.08MM CE R/A HDR,TRM BLK |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 量程（°/s） | :- | 额定电压 | 300 V ac |
| 极数 | 6 | 最大额定电流 | 15A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Green | 深度 | 12 mm |
| 间距 | 5.08 mm | 高度 | 8.35 mm |
| 长度 | 32.3mm | 重量 | 0.025 |
| 包装方式 | Bulk | 引脚样式 | Right Angle |
| 方向 | angled 90° | 端接方式 | Solder |
| 柱间距 | 5.08mm | 基体材料 | polyamide |
| 外壳颜色 | Green | 安装类型 | Through Hole |
| 连接器类型 | male | 接触镀层 | Tin |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 32.3 mm | 包装数量 | 800 |
| 尺寸/外形 | see | 连接器 - 电缆 | socket |
| 连接器颜色 | green | 排针方向 | 90°, Right Angle |
| 触点数 | 6 | 接触件端接 | :PCB |
| 位数 | 6 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
产品信息
| SPG | 800 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | Eurostyle |
| 单元数量 | 1 | 层数 | 1 |
| 每层位数 | 6 | ||
环境参数
| 工作温度 | -40C to 105C | ||
