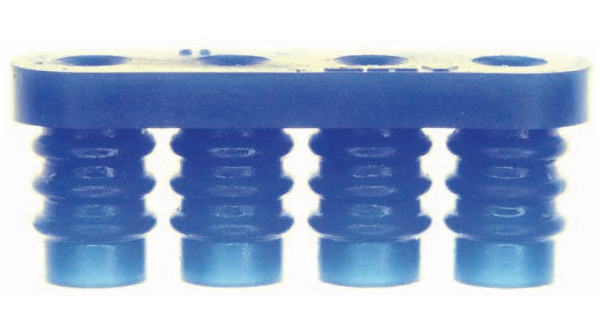

794274-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Seal Protector 4 POS Silicon Rubber Blue .250" Centerline, 600 V, 19 - 36 A max CONN WIRE SEAL 4POS UMNL BLUE universal mate-n-lok 4 way wire seal Power to the Board SPLASH PROOF SEAL 4P Wire Connector Accessories Seal Protector 4 POS Silicon Rubber Blue Product Highlights:Seal ProtectorUniversal MATE-N-LOKNot CompactPCINumber of Circuits = 4In-Line Contact LayoutSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP WIRE SEAL, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;19;600;SiliconRubber;Blue Seal for wire; 6.35mm; PIN:4; Pin layout:1x4; Gasket: silicone Wire seal, 794274-1, TE Connectivity TE Connectivity MATE N LOK系列 IP56 硅酮 电线密封 04P UMNL WIRE SEAL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | ||
电气参数
| 额定电压 | 600 V | 输出数量 | 4 |
| 最大额定电流 | 19 A | 连接器类型 - 电压输入 | UniversalMATE-N-LOK |
机械参数
| 颜色 | Blue | 深度 | 7.62 mm |
| 高度 | 10.16 mm | 重量 | 0.002 |
| 导线线规 | :0.5mm² | 柱间距 | 6.35mm |
| 外壳镀层 | :Silicone Rubber | 安装样式 | Press Fit |
| 连接器用途 | seal for wire | 壳体材料 | Silicon Rubber |
| 总长度 | 26.67 mm | 主要材料 | Interconnect |
| 端接样式 | Quick Connect | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Blue | 触点数 | 4 |
| 位数 | 4 | 中心触点表面处理 | 0.25 |
| 绝缘材料 - 材质 | silicone | 典型触点布局 | In-Line |
| 线规或范围 - AWG | 30-16 | 线规或范围 - mm² | :2.0mm² |
| 第一连接器安装特征 | 1x4 | 外径-未扩张 | :3.3mm |
产品信息
| 类型 | Seal Protector | 系列 | :Sealed Universal Mate-N-Lok |
| 产品特性 | Splash-Proof | CAD图纸 | 3D CAD Model |
| 制造商全称 | MATE-N-LOK | 产品子类型 | Accessories |
| 附件类型 | Seal | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 射频系列/标准 | 794274 |
| 适用产品/相关产品 | Universal MATE-N-LOK Series | ||
环境参数
| 防护等级 | IP56 for 1,52...2,79mm cable, IP57 for 2,79...3,3mm cable | ||
文档与媒体
