770377-1

制造商	TE Connectivity Ltd.

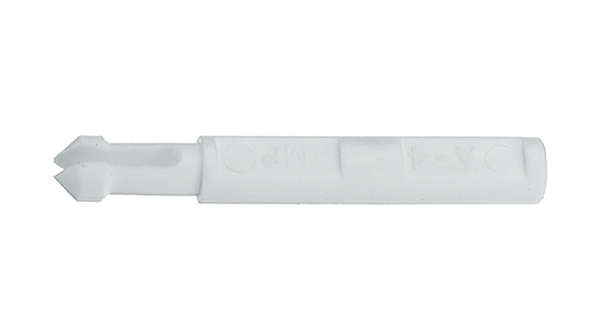

描述	Connector Accessories Keying Plug Nylon White .250" Centerline, 600 V, 19 - 36 A max CONN KEYING PLUG UNIV-MATE II Mate-N-Lok keying plug Pin & Socket Connectors KEYING PLUG Connector Accessories Keying Plug Nylon White Product Highlights:Keying PlugUniversal MATE-N-LOK IINot CompactPCINylon Housing MaterialColor = WhiteSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP SEALING PLUG, SPLASHPROOF KEYINGPLUG,UNIVERSALMATE-N-LOKII,NYLON,WHITE Coding pin Male, 770377-1, TE Connectivity TE Connectivity MATE-N-LOK 系列键控插头 UMNL II KEYING PLUG
分类	集成电路逻辑IC扫描测试逻辑IC

对参数有疑问？问 AI 助手

商业参数

产品类别	Pin & Socket Connectors	标准包装数量	Bulk
工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010

电气参数

额定电压

600 V

最大额定电流

19 A

机械参数

深度	3.3 mm	间距	6.35 mm
宽度	3.3mm	长度	23.88mm
重量	0.019	连接器类型	:Hardware
壳体材料	Polyamide (PA)	总长度	23.88 mm
连接器颜色	:Blue

产品信息

类型	Key	系列	:Universal MATE-N-LOK
已删除	Compliant	CAD图纸	3D CAD Model
产品子类型	Accessories	附件类型	Keying Plug
射频系列/标准	770377	适用产品/相关产品	Universal MATE-N-LOK Series

环境参数

工作温度

-55C to 120C

文档与媒体

PDF 文档

1650929.pdf

在线文档

770377-1?RQPN=770377-1
