点击放大查看

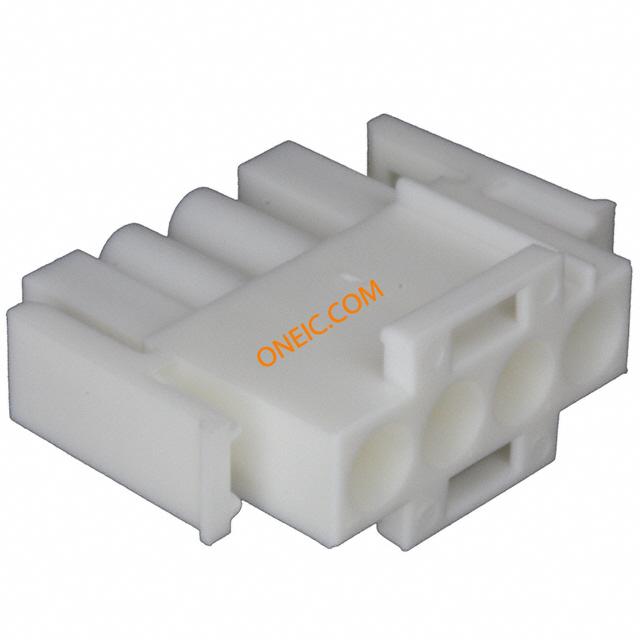

350779-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS 94V-0 UNI-MATE 4 way white plug housing Pin & Socket Connectors PLUG HOUSE. 4 POS. Conn Housing PL 4 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:4; 600V Crimp housing Pitch6.35 mm Poles 4 MATE-N-LOK Universal, 350779-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 4 路 直 公 压接连接器外壳 04P UMNL PLUG HSG |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL, VDE | 材料阻燃等级 | :UL94V-0 |
电气参数
| 额定电压 | 600 V | 工作电压 | :600V |
| 接触电阻 | :3.5mohm | 介电强度 | :5000V |
| 最大额定电流 | 19 A | 绝缘电阻 | :1000Mohm |
| 最小供电电压 | 600VAC | 连接器类型 - 电压输入 | sealable |
机械参数
| 颜色 | Natural | 深度 | 27.43mm |
| 间距 | 6.35 mm | 宽度 | 14.73mm |
| 高度 | 14.73 mm | 重量 | 0.004 |
| 材料（通用） | :Nylon | 包装方式 | Bulk |
| 导线线规 | 10-30 AWG | 触头类型 | Male or Female |
| 柱间距 | 6.35mm | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | Free Hanging |
| 排数 | 1 | 锁定特性 | lock |
| 材料表面处理 | :- | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 包装数量 | 500 |
| 连接器 - 电缆 | plug | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Opaque |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 500 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | MATE-N-LOK | CAD图纸 | 3D CAD Model |
| 产品子类型 | Plug Housings | 适配器系列 | Universal MATE-N-LOK |
| 单元数量 | 1 | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 插拔次数 | :50 | 工作温度 | -55C to 105C |
文档与媒体
相关型号
350833-4
te connectivity / amp
Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 GOLD Pin & Socket Connectors 4P HDR ASSY PC 94V0 Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL HDR ASSY PC 94VO LF
1-480703-0
te connectivity / amp
Conn Housing RCP 4 POS 6.35mm Crimp ST Panel Mount Individual .250" Centerline, 600 V, 19 - 36 A max CONN CAP 4POS 94V-2 UNI-MATE Pin & Socket Connectors CAP HOUSE 4 POS Conn Housing RCP 4 POS 6.35mm Crimp ST Panel Mount Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, RECEPTACLE, 4 WAY, NYLON Connector,SoftShell;UniversalMATE-N-LOK;4;Receptacle(Cap);Nylon;19A Plug/socket; wire-wire; male/female; w/o terminals; 6.35mm; PIN:4 Receptacle housing Pitch6.35 mm Poles 4 Single row / for panel mount MATE-N-LOK Universal, 1-480703-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm 节距 4 路 直 母 压接连接器外壳 04P UMNL CAP HSG NATL
350792-2
te connectivity / amp
Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 AU Pin & Socket Connectors HEADER 4 POS Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADERVERT4WAYPIN TE Connectivity MATE-N-LOK 系列 白色 4P 工业电源 插头 , 19A额定电流, 600 V 交流
2-480703-0
te connectivity / amp
04P UMNL CAP HSG NATL Power to the Board 04P CAP HSG NAT CONN CAP 4POS UNIV-M-N-L NATURAL
1-480703-2
te connectivity / amp
Conn Housing RCP 4 POS 6.35mm Crimp ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 4POS 94V-2 RED Power to the Board CAP HOUSE 4 POS RED UL94V-2 Conn Housing RCP 4 POS 6.35mm Crimp ST Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, RECEPTACLE, NYLON 04P UMNL CAP HSG RED
3-643230-0
te connectivity / amp
Conn Wire to Board HDR 4 POS 6.35mm Solder RA Thru-Hole .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS R/A .250 GOLD Pin & Socket Connectors 4P HDR ASSY R/A 94VO 04P UMNL HDR ASSY R/A 94VO LF 04P UMNL HDR ASSY R/A 94VO LF Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

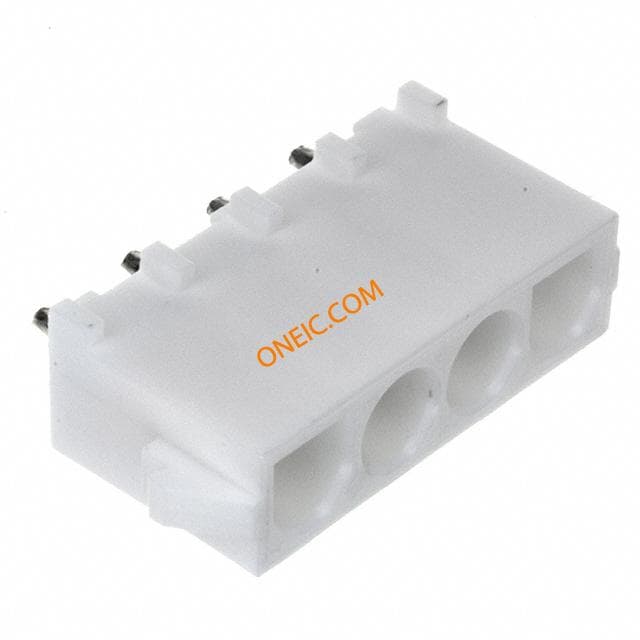

643416-1
