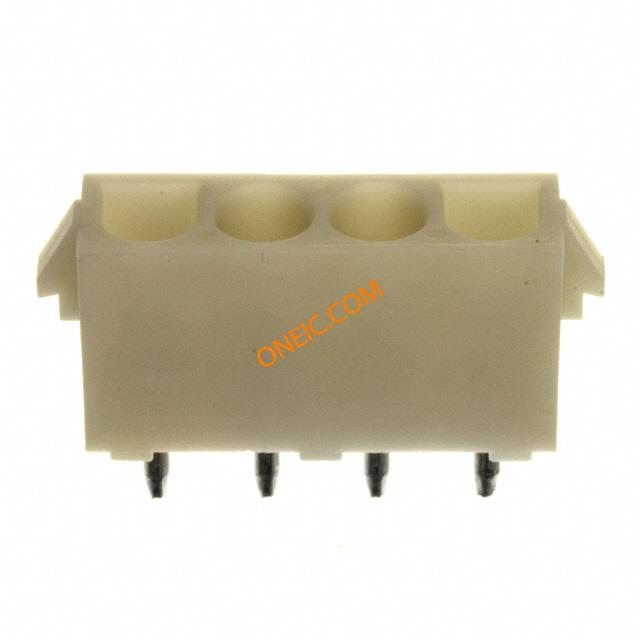

350833-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 GOLD Pin & Socket Connectors 4P HDR ASSY PC 94V0 Conn Power SKT 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 04P UMNL HDR ASSY PC 94VO LF |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA分类 | 已认证 |
| UL阻燃等级 | UL 94V-0 | 认证机构标志 | 是 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 600 V | 供电电压 | 600 |
| 最大额定电流 | 19 A | ||
机械参数
| 颜色 | White | 间距 | 6.35 mm |
| 宽度 | 7.62 | 长度 | 26.67 |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 壳体颜色 | 白色 | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Header | 接触镀层 | Gold |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 4 | 排数 | 1 |
| 高度（英寸） | 13.97 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 包装数量 | 100 |
| 面板安装类型 | 通孔 - 焊接 | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 绝缘直径 | 5.08 | 位数 | 4 |
| 外壳尺寸-插件 | 插头 | 兼容外壳尺寸（如TM-700等） | 与插头护套插接（使用插针端子） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式 | 端子柱长度 | 3.18 mm [ .125 in ] |
| 接触镀层厚度 | 30µin (0.76µm) | 静电放电屏蔽 | 不带 |
| 每排/每行位置数 | All | 护套（绝缘）厚度 | 1.27 µm [ 50 µin ] |
产品信息
| 类型 | Power | 连接器性别 | SKT |
| 系列 | Mate-N-Lok | 产品子类型 | Receptacle Housings |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | 1.57 mm [ .062 in ] | ||
