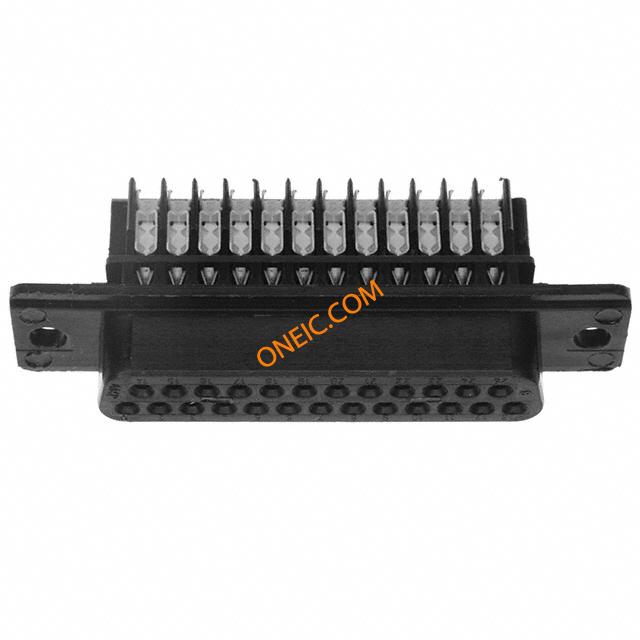

点击放大查看
745209-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors DSUB B25S IDC 26-22 AWG Standard Cable Connectors CONN D-SUB RCPT 25P 22-26AWG AU Conn D-Subminiature SKT 25 POS 2.76mm IDT ST Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 25ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CableSocket;25Pos;STR;HDE-20Series;IDC;26-22AWG;AllPlasticShell HDE20 Series 25 Position Socket Plastic Shell Discrete Wire IDC D-Sub 25 HDE AP RECEPT, LEAD FREE |
| 分类 |
商业参数
| 其他名称 | A31942 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 84 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 250V | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | Varies by Wire Gauge | ||
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 外形尺寸(长x宽) | 3 | 锁定类型 | 带有 |
| 包装方式 | Tray | 屏蔽 | 否 |
| 电缆类型 | Discrete Wire, Round Jacketed Cable | 外壳尺寸 | 3 |
| 导线线规 | 26-22 | 端接方式 | IDT |
| 触点形式 | Signal | 触点尺寸 | 20 |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Cable Mount | 外壳镀层 | Thermoplastic |
| 端子尺寸 | 20 | 行程角度 | Straight |
| 连接器类型 | Insulation Displacement Crimp (IDC) | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | FullMetalShell |
| 连接器样式 | D-Sub | 插入件材料 | 磷青铜 |
| 锁定特性 | Mounting Holes | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | 无 |
| 包装数量 | 84 | 主要材料 | D-Subminiature |
| 接地凹痕 | Without | 端接样式 | IDC |
| 触点数 | 25 | 绝缘直径 | 1.52 [0.060] |
| 位数 | 25 | 外壳尺寸-插件 | All Plastic |
| 接触镀层厚度 | 30µin (0.76µm) | 线规或范围 - AWG | 26 – 22 |
| 线规或范围 - mm² | 0.15 - 0.40 [26-22] | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | All connectors are preloaded. Individual conductor strands should be larger tha | 类型 | D-Subminiature |
| 等级 | Standard | 连接器性别 | SKT |
| 系列 | HDE-20 (IDC) | 制造商全称 | HDE-20 |
| 预装 | 是 | 产品子类型 | Connector |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
