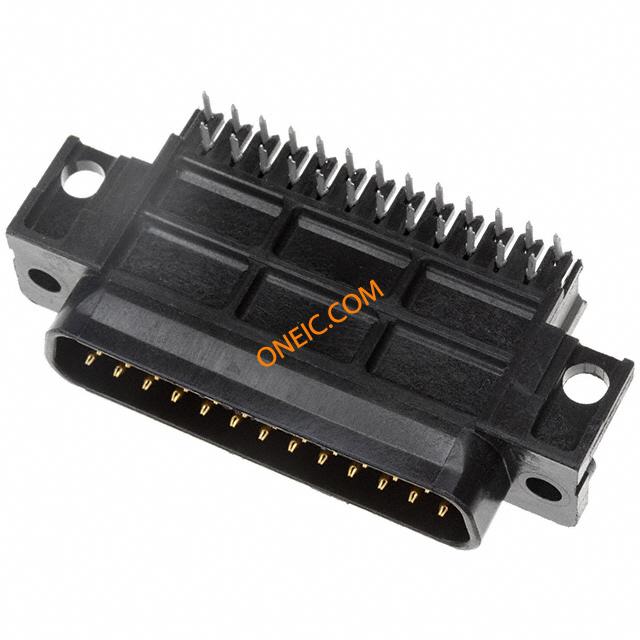

748826-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 25 POS 2.76mm Solder RA Thru-Hole 25 Terminal 1 Port D-Sub Standard Connectors 25P PLUG R/A PLASTIC 140 Standard Board Mount Connectors CONN D-SUB PLUG R/A 25POS T/H 25 APIII PLUG 590 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 70 | ||
合规参数
| RoHS | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | ELV compliant, 5 of 6 Compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接地方式 | Without | 额定电压 | 125V |
| 最大额定电流 | 6A | ||
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 密封型 | No | 外形尺寸(长x宽) | 3 |
| 占位面积 | 14.99 [.590] | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 外壳尺寸 | 3 |
| 端接方式 | Solder | 触头类型 | Signal |
| 柱间距 | .108 | 第二连接器 | Without |
| 安装类型 | Through Hole | 端子尺寸 | .125 |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 电路板厚度 | 0.093 [2.36] | 连接器样式 | D-Sub |
| 插入件材料 | 黄铜 | 外形（宽 x 高） | Standard |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 包装数量 | 70 | 面板安装类型 | Without |
| 接地凹痕 | Without | 端接样式 | Through Hole |
| 连接器颜色 | None | 触点数 | 25 |
| 位数 | 25 | 外壳尺寸-插件 | All Plastic |
| 端子柱长度 | 3.18 [0.125] | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳与棱镜材料 | 是 | 外壳尺寸，连接器布局 | 3 (DB, B) |
产品信息
| 备注 | Plugs are preloaded with size 20 DF posted pin contacts | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HD-20 |
| 可密封 | 否 | 制造商全称 | AMP |
| 预装 | 是 | 产品子类型 | 连接器 |
环境参数
| 工作温度 | -55°C ~ 105°C | 封装热阻 | 2.36 mm [ .093 in ] |
文档与媒体
相关型号
1658614-2
te connectivity / amp
Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port D-Sub Standard Connectors LPP RECEPTACLE 25P Standard Cable Connectors CONN D-SUB RECEPT 25POS 30 GOLD AMPLIMITE HDF-20 d-sub IDC socket,25 way Conn D-Subminiature SKT 25 POS 2.76mm IDT RA Cable Mount 25 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 25ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, IDC, D, PLASTIC, 25WAY Conn;D-Ribbon;CableSocket;25Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell D-sub socket 25P, 1658614-2, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.76mm 节距 25 路 IDC D-Sub 带状电缆连接器, 插座, 热塑性外壳 25 POS HDF RCPT, AP, LEAD FREE
