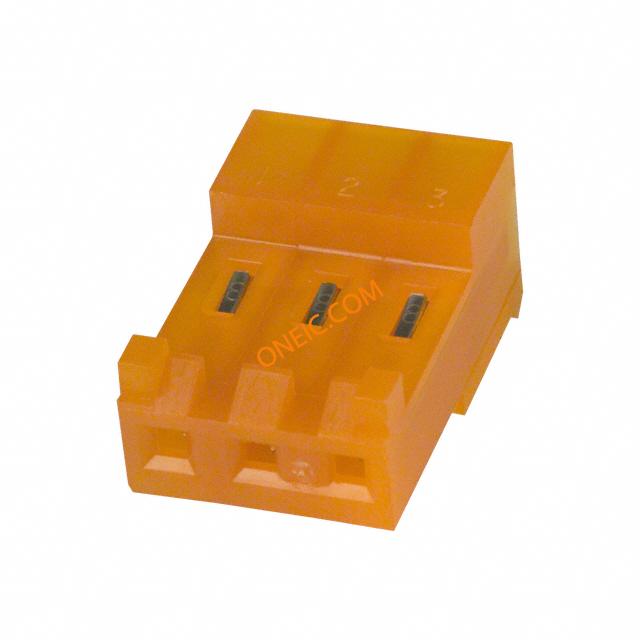

643817-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 3POS 18AWG MTA156 Conn IDC Connector F 3 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 3Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 03P MTA156 CONN ASSY 18AWG ORA |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | CSA档案号 | LR7189 |
| 标准编号 | CSA, UL | CSA认证 | Certified |
| UL阻燃等级 | UL 94V-2 | ||
电气参数
| 供电电压 | 600 | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | 7 | ||
机械参数
| 颜色 | Orange | 间距 | 3.96 mm |
| 长度 | 11.89 | 密封型 | Not Sealed |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 橙色 | 电缆类型 | 分离式导线 |
| 导线线规 | 18 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Tin-Lead |
| 触点时序 | Without | 紧固类型 | Locking Ramp |
| 安装样式 | 不带 | 引脚数 | 3 |
| 排数 | 1 | 封装形式 | Receptacle |
| 外壳材料（壳体） | 标准外形 | 高度（英寸） | 9.02 |
| 插入件材料 | 铜合金 | 壳体材料 | 尼龙 |
| 包装数量 | 500 | 面板安装类型 | 不带 |
| 电缆端接方式 | IDC | 端接样式 | 插座 |
| 触点数 | 3 | 接触件端接 | Locking Lance |
| 绝缘直径 | 2.41 mm [ .095 in ] | 位数 | 3 |
| 兼容外壳尺寸（如TM-700等） | MTA .156 公端 | 安装孔直径 | 带有 |
| 接触件表面处理 - 配合 | 锡铅 | 典型触点布局 | 直插式 |
| 接触镀层厚度 | 80µin (2.03µm) | 静电放电屏蔽 | 带有 |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Closed End, Polarizing Key | 产品子类型 | 连接器组件 |
| 安装类型 | Closed End | 输出配置 | 90° |
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -55 – 105 °C [ -67 – 221 °F ] |
