点击放大查看

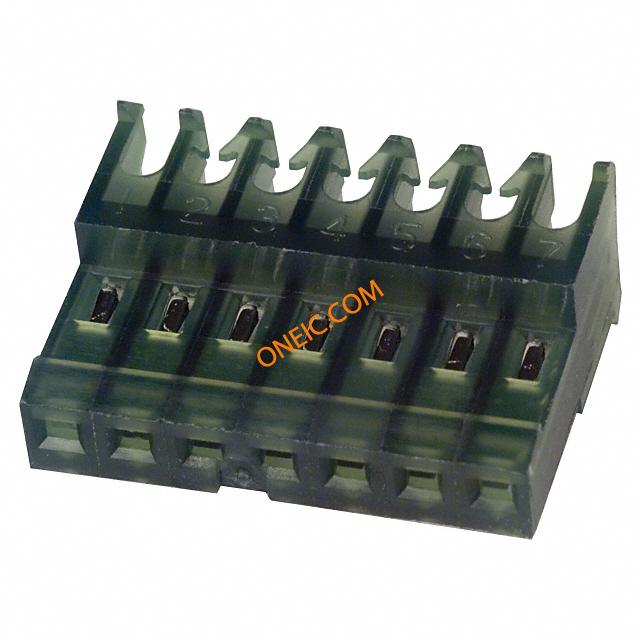

640623-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 7 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 7POS 28AWG MTA100 |
| 分类 |
商业参数
| 其他名称 | A19137 | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定交流电压 | 250 | ||
机械参数
| 颜色 | Green | 间距 | 2.54 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 出线方向 | 90° |
| 导线线规 | 28 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | Green | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Feed Thru | 接触镀层 | Tin-Lead Over Nickel |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 电缆端接方式 | IDC | 配接方向 | Without |
| 触点数 | 7 | 位数 | 7 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 80µin (2.03µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.08-0.09² [28] |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Feed Through | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
