640599-6

点击放大查看

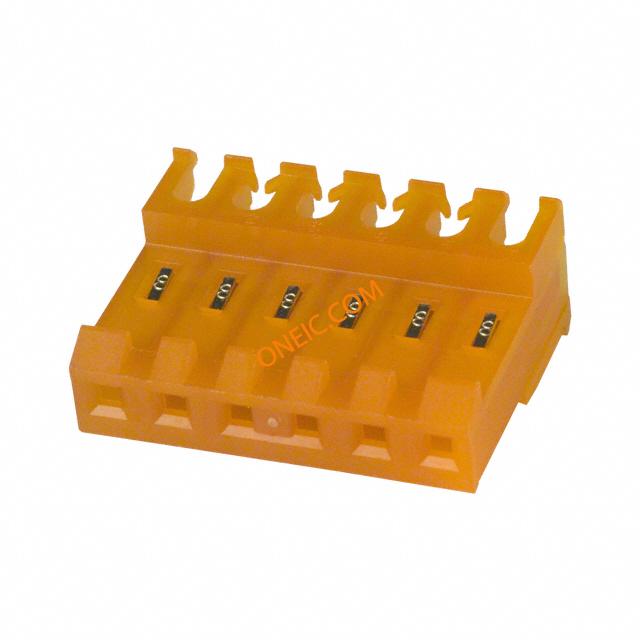

640599-6

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Headers & Wire Housings FEED THRU WO TAB 6P L.R. orange 18 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 6POS 18AWG MTA156 Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 6Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 06P MTA156 CONN ASSY 18AWG ORA
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A19664产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSNoUL等级获得认可
零件状态E28476CSA档案号LR7189
标准编号CSA, ULCSA认证Certified
UL阻燃等级UL 94V-2

电气参数

额定电压600 VAC开关功能Locking Ramp
供电电压600连接器阻抗刺破式压接 (IDC)
最大额定电流7 A

机械参数

颜色Orange间距3.96 mm
高度9.78 mm [ .385 in ]长度23.77 mm [ .936 in ]
密封型Not Sealed包装方式Bulk
导线类型Discrete or Ribbon Cable壳体颜色橙色
电缆类型分离式导线导线线规18
端接方式IDT触头类型Female Socket
安装类型Free Hanging (In-Line)连接器类型Receptacle
接触镀层Tin-Lead Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
引脚数6排数1
封装形式Receptacle外壳材料（壳体）标准外形
插入件材料铜合金触头材料Copper Alloy
壳体材料Nylon包装数量250
面板安装类型不带电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数6接触件端接Locking Lance
绝缘直径2.41 mm [ .095 in ]位数6
兼容外壳尺寸（如TM-700等）MTA .156 公端安装孔直径不带
接触件表面处理 - 配合锡铅典型触点布局直插式
接触镀层厚度80µin (2.03µm)静电放电屏蔽带有

产品信息

类型IDC Connector连接器性别F
系列MTA-156产品特性Feed Through
产品子类型Receptacles / Sockets - Housings安装类型Feed Through
输出配置90°

环境参数

测试温度标准件 - 非灼热丝工作温度-55 – 105 °C [ -67 – 221 °F ]
