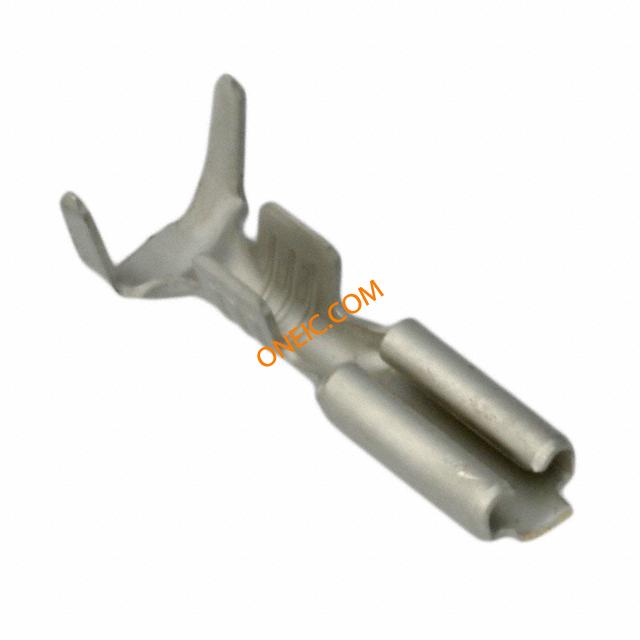

63093-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 14-18AWG F 15.88mm Tin Strip Terminals 110 FAST RCPT 18-14 FASTON Uninsulated Receptacles & Housings CONN RECEPT FASTON 14-18AWG .110 Quick Disconnect Terminal 14-18AWG F 15.88mm Tin Strip Product Highlights:ReceptacleTab Fit = 2.79 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 110 REC 14-18AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A100911CT |
| 产品类别 | Terminals | 标准包装数量 | 5,000 |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 表面处理 | Tin |
| 材料（通用） | Brass | 包装方式 | Reel |
| 插片宽度 | 2.79 x 0.81 [.110 x .032] | 厚度 | 0.25 [0.010] |
| 电缆类型 | Regular Wire | 绝缘类型 | Not Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 18-14 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 0.11 in x 0.032 in |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 电缆材料 | Stranded | 连接器类型 | Yes |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 连接器用途 | Wire & Cable |
| 箔压接区域 | F-Crimp | 插入件材料 | 黄铜 |
| 插入力 | Normal | 触头材料 | Brass |
| 总长度 | 0.635" (16.13mm) | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 2.79 – 4.83 mm [ .11 – .19 in ] |
| 绝缘直径 | 2.79-4.83 [.110-.190] | 绝缘材料 - 类型 | No |
| 总厚度 | .25 mm [ .01 in ] | 法兰上方插针尺寸 | 2.8 mm [ .11 in ] |
| 法兰下方引脚尺寸 | .81 mm [ .032 in ] | 线规或范围 - mm² | 0.80-2.00² [18-14] |
| 第二连接器安装特性 | No | 外径-未扩张 | 4.83 mm [ .19 in ] |
产品信息
| 备注 | No hole or dimple | 连接器性别 | Female |
| 系列 | 110 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
